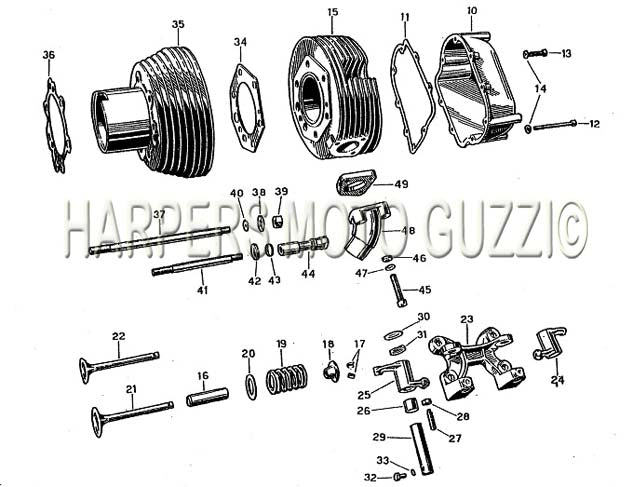

1967 1968 V700 Cylinders Cylinder Heads Rocker Boxes Rocker Assemblies Valves
| Position | Part Number | Description |
|---|---|---|
| 10 | 12023520 | VALVE COVER ( #12023520) (#12023520) |
| 11 | 12023700 | V/C GASKET (#12023700) |
| 12 | 98106082 | SCREW (#98106082) |
| 12 | 98620330 | V/COVER BOLT (#98620330) USE 98680330 |
| 13 | 98106028 | BOLT (#98106028) |
| 14 | 95100130 | WASHER (#95100130) |
| 15 | 12022100 | CYLINDER HEAD (#12022100) |
| 15 | 12022200 | CYL HD COVER (#12022200) USE 12022201 |
| 16 | 12036800 | GUIDES (#12036800) |
| 17 | 12038100 | HALF CONE (#12038100) |
| 18 | 12038000 | TOP COLLAR (#12038000) |
| 19 | 12037400 | SPRING (#12037400) |
| 20 | 12037000 | BOTTOM COLLAR (#12037000) |
| 21 | 12036000 | INTAKE VALVE (#12036000) |
| 22 | 12036100 | EXHAUST VALVE (#12036100) |
| 23 | 12034800 | SUPPORT (#12034800) |
| 24 | 12030200 | ROCKER ARM/RIGHT SIDE (#12030200) |
| 25 | 12030400 | ROCKER ARM/LEFT SIDE (#12030400) |
| 26 | 91111511 | ROCK.ARM BSHG. (#91111511) |
| 27 | 12034000 | ADJUSTING STUD (#12034000) |
| 28 | ||
| 29 | 12031800 | ROCKER SPINDLE (#12031800) |
| 30 | 90118152 | WASHER (#90118152) |
| 31 | 94322215 | SPRING-ROCKER (#94322215) |
| 32 | 13022000 | USE 13022001 (#13022000) |
| 32 | 98024312 | BOLT (#98024312) |
| 33 | 13020200 | CYLINDER (#13020200) |
| 33 | 95021106 | WASHER, WAVE (#95021106) |
| 34 | 12022000 | GASKET (#12022000) |
| 34 | 13020800 | BASE GASKET (#13020800) USE 14020850 |
| 35 | 12020200 | 12060100 (#12020200) |
| 36 | 12020800 | BASE GASKET (#12020800) USE 14020850 |
| 37 | 12021700 | BOLT-ROD (#12021700) |
| 38 | 95100315 | WASHER (#95100315) |
| 39 | 92751103 | NUT (#92751103) |
| 40 | 90706090 | O RING (#90706090) USE 90706094 |
| 41 | 12021800 | BOLT (#12021800) |
| 42 | 12021600 | WASHER (#12021600) |
| 43 | 90706119 | O RING (#90706119) |
| 44 | 12021900 | CYL HEAD NUT 700 (#12021900) |
| 45 | 98620445 | SCREW (#98620445) |
| 46 | 90716082 | USE 90716083 (#90716082) |
| 47 | 95100223 | WASHER (#95100223) |
| 48 | 12115000 | Air intake tube (#12115000) |
| 49 | 12115500 | Seal, air intake tube (#12115500) |
