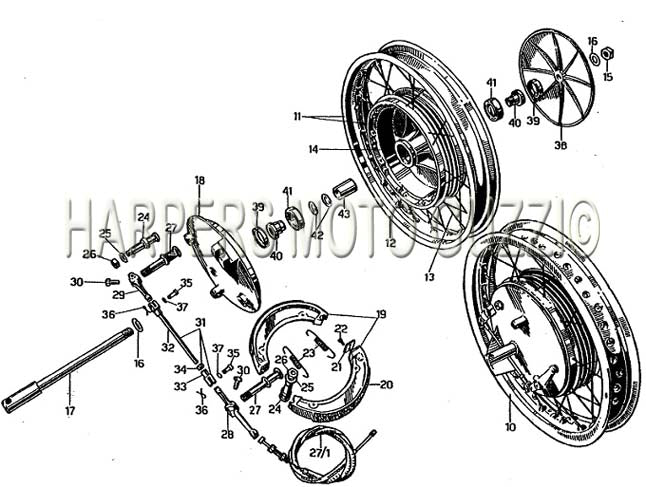

1967 1968 V700 Front Wheel Wheel Hub Front Brake And Control
| Position | Part Number | Description |
|---|---|---|
| 10 | 12610200 | WHEEL COMPL. **NLA** (#12610200) |
| 11 | 12610300 | WHEEL BARE (#12610300) |
| 12 | 12610800 | WHEEL RIM (#12610800) |
| 13 | 12611500 | SPOKE (#12611500) USE 12611501 OR 12611501A |
| 14 | 12613200 | HUB (#12613200) |
| 15 | 92700171 | NUT (#92700171) |
| 16 | 95100628 | WASHER (#95100628) |
| 17 | 12614100 | SPINDLE (#12614100) |
| 18 | 12620200 | HUB COVER (#12620200) |
| 19 | 12620800 | BRAKE SHOE FRT PR (#12620800) |
| 20 | 12621400 | BRAKE LINING (#12621400) |
| 21 | 12620900 | END PLATE (#12620900) |
| 22 | 98200614 | Screw, end plate to shoe (#98200614) |
| 23 | 12622100 | SPRING (#12622100) |
| 24 | 12623200 | PIN (#12623200) |
| 25 | 95100311 | WASHER (#95100311) |
| 26 | 92602210 | NUT (#92602210) |
| 27 | 12622500 | CAM (#12622500) |
| 27 | 12625400 | 12625445 (#12625400) |
| 27 | 12625401 | FRT BRAKE CABLE (#12625401) |
| 27 | 12626300 | PROTECTION FRONT BRAKE CABLE BOOT NLA (#12626300) |
| 27 | 95100727 | WASHER (#95100727) |
| 28 | 12625300 | LEVER (#12625300) |
| 29 | 12625000 | LEVER (#12625000) |
| 30 | 98106022 | BOLT (#98106022) |
| 31 | 12626600 | ROD COMPL. (#12626600) |
| 32 | 12626700 | ROD (#12626700) |
| 33 | 12626800 | FORK (#12626800) |
| 34 | 92602206 | NUT (#92602206) USE STHN6MM |
| 35 | 95780265 | PIN (#95780265) USE 95770265 |
| 36 | 95500222 | SPLIT PIN (#95500222) |
| 37 | 95129110 | WASHER (#95129110) |
| 38 | 12621500 | HUB COVER (#12621500) |
| 39 | 90403249 | SEAL, HUB (#90403249) |
| 40 | 12615200 | bushing *NLA* (#12615200) |
| 41 | 92246922 | BEARING, TAPERED ROLLER (#92246922) |
| 42 | 951007415 | Adiustlng washer (#951007415) |
| 43 | 12615300 | DISTANCE PIECE (#12615300) |
