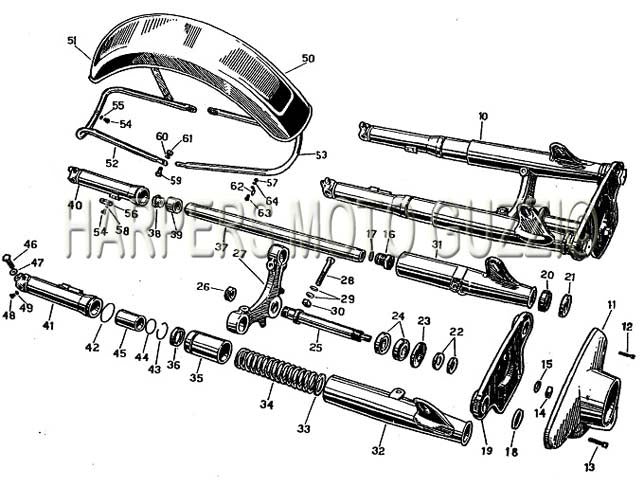

1967 1968 V700 Steering Front Fork Front Fender
| Position | Part Number | Description |
|---|---|---|
| 10 | 12490221 | FORK (#12490221) |
| 11 | 12501500 | INSTR. PANEL (#12501500) |
| 12 | 98620325 | ALLEN BOLT (#98620325) |
| 13 | 98620330 | V/COVER BOLT (#98620330) USE 98680330 |
| 14 | 92701139 | NUT (#92701139) |
| 14 | 92701148 | NUT (#92701148) |
| 15 | 95100521 | WASHER (#95100521) |
| 16 | 12504500 | PLUG (#12504500) |
| 17 | 90706222 | O RING (#90706222) |
| 18 | ||
| 19 | 12493000 | PLATE (#12493000) |
| 19 | 12493001 | PLATE (#12493001) |
| 20 | ||
| 21 | 12492300 | CAP (#12492300) |
| 22 | 93601026 | CRANK RING NUT (#93601026) |
| 23 | 12494500 | CAP (#12494500) |
| 24 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 25 | 12494100 | 12494180 (#12494100) |
| 25 | 12494180 | STEM (#12494180) |
| 26 | ||
| 27 | 12494200 | 12494201 (#12494200) |
| 27 | 12494201 | BOTTOM YOKE (#12494201) |
| 28 | 98053675 | BOLT (#98053675) |
| 29 | 95101430 | WASHER (#95101430) |
| 30 | 12498000 | GUIDING SQUARE (#12498000) |
| 30 | 91551091 | GROMMET (#91551091) |
| 30 | 92700124 | NUT (#92700124) |
| 31 | 12496120 | 12496121 (#12496120) |
| 31 | 12496121 | H.L. BRACKET RH (#12496121) |
| 32 | 12496220 | 12496221 (#12496220) |
| 32 | 12496221 | H.L. BRACKET LH (#12496221) |
| 33 | 12527600 | BOTTOM PLATE (#12527600) |
| 34 | 12526600 | SPRING (#12526600) |
| 35 | 12527700 | HOUSING (#12527700) |
| 36 | 90403550 | SEALS, F/FORKS (#90403550) |
| 37 | 12525400 | FORK TUBE replated (#12525400) |
| 38 | 12525900 | LOCK RING (#12525900) |
| 39 | 12525800 | BUSHING NLA (#12525800) |
| 40 | 12522500 | FORK LEG RH (#12522500) |
| 41 | 12522600 | FORK LEG (#12522600) |
| 42 | 90706490 | O RING (#90706490) |
| 43 | 90353046 | CIRCLIP (#90353046) |
| 44 | 12527200 | SHIM 2.0 MM (#12527200) |
| 44 | 12527201 | SHIM 2.1 MM (#12527201) |
| 44 | 12527202 | SHIM 2.2 MM (#12527202) |
| 44 | 12527203 | SHIM 2.3 MM (#12527203) |
| 44 | 12527204 | SHIM 2.4 MM (#12527204) |
| 45 | 12526700 | BUSHING (#12526700) |
| 46 | 98110035 | BOLT (#98110035) |
| 47 | 95100331 | WASHER NLA (#95100331) |
| 48 | 98305009 | SCREW (#98305009) |
| 49 | 90714051 | WASHER 5.25 X 8.5 X 1 (#90714051) |
| 50 | 12434300 | 12434320 (#12434300) |
| 50 | 12434320 | FENDER-WHITE (#12434320) |
| 50 | 12781520 | NLA CAN USE 1278 1521 (RED) (#12781520) |
| 51 | 40917800 | DECAL (#40917800) |
| 52 | 12435700 | FRONT FENDER STAY TOP V700 AMBASSADOR ELDORADO (#12435700) |
| 53 | 12435900 | FRONT FENDER STAY REAR (#12435900) |
| 54 | 98024312 | BOLT (#98024312) |
| 55 | 95100121 | WASHER (#95100121) |
| 56 | 55434825 | PLATE (#55434825) |
| 57 | 92602406 | ADJ SCREW NUT (#92602406) |
| 58 | 95100130 | WASHER (#95100130) |
| 59 | 98024422 | BOLT (#98024422) |
| 60 | 95021108 | WASHER (#95021108) |
| 61 | 92602208 | NUT (#92602208) |
| 62 | 55436525 | HOLDER (#55436525) |
| 63 | 98346010 | SCREW CHROME (#98346010) |
| 64 | 95021106 | WASHER, WAVE (#95021106) |
| 65 | 12749400 | GROMMET (#12749400) |
