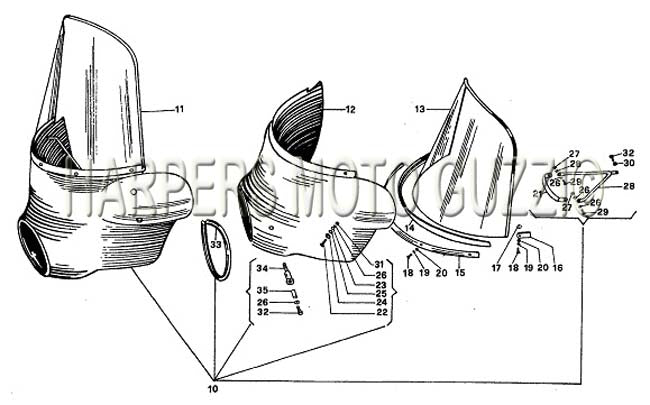

1969 1972 750 Ambassador Fairing Windscreen
| Position | Part Number | Description |
|---|---|---|
| 10 | 12575121 | Fairing-windscreen, assembly with frame attachments (including fig. 21-22-23-24-25-26-27-28-29-30-31-32-33-34-35) (#12575121) |
| 11 | 12575321 | OEM FRNG WITH OUT MOUNTING BRACKETS (#12575321) |
| 12 | 12575421 | FAIRING (#12575421) |
| 13 | 12577250 | WINDSHIELD REPLACEMENT FOR ELDO FAIRING (#12577250) |
| 14 | 12577940 | MOULDING (#12577940) |
| 15 | 12578240 | BRACE (#12578240) |
| 16 | 12578450 | RETAINER (#12578450) |
| 17 | 12706800 | RUBBER RING 561.6632 NLA 3/9/01 (#12706800) |
| 18 | 98260520 | SCREW (#98260520) |
| 19 | 95000205 | WASHER (#95000205) |
| 20 | 92602205 | NUT (#92602205) |
| 21 | 12575540 | BRACKET (#12575540) |
| 22 | 98260625 | SCREW (#98260625) |
| 23 | 93110060 | RUBBER WASHER (#93110060) |
| 24 | 12577840 | WASHER (#12577840) |
| 25 | 45212400 | WASHER (#45212400) |
| 26 | 95021106 | WASHER, WAVE (#95021106) |
| 27 | 92602406 | ADJ SCREW NUT (#92602406) |
| 28 | 12578621 | FAIRING SUPPORT (#12578621) |
| 29 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 31 | 92602206 | NUT (#92602206) USE STHN6MM |
| 32 | 98054318 | BOLT (#98054318) |
| 33 | 12578940 | GASKET (#12578940) |
| 34 | 12740740 | BOLT (#12740740) |
| 35 | 91180707 | SPACER (#91180707) |
