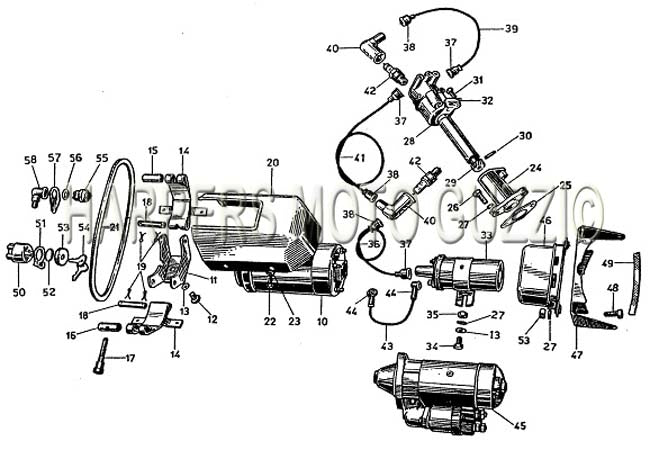

1969 1972 750 Ambassador Ignition And Lighting
| Position | Part Number | Description |
|---|---|---|
| 10 | 12700200 | GENERATOR (#12700200) |
| 10 | 12700205 | GENERATOR (#12700205) |
| 11 | 12700300 | GENERATOR BRACKET (#12700300) |
| 12 | 98024420 | BOLT (#98024420) |
| 13 | 95021108 | WASHER (#95021108) |
| 14 | 12700700 | BAND (#12700700) |
| 15 | 95716280 | PIN (#95716280) |
| 16 | 95716380 | PIN (#95716380) |
| 17 | 99105127 | BOLT (#99105127) |
| 18 | 12700900 | PIN (#12700900) |
| 19 | 95500222 | SPLIT PIN (#95500222) |
| 20 | 12700610 | COVER, GEN NLA (#12700610) |
| 21 | 12702500 | BELT FOR MARELLI SYSTEM (#12702500) |
| 21 | 12702505 | GEN BELT BOSCH (#12702505) |
| 22 | 98106009 | BOLT (#98106009) |
| 23 | 95100130 | WASHER (#95100130) |
| 24 | 12715700 | HOUSING (#12715700) |
| 25 | 12715900 | GASKET (#12715900) |
| 26 | 98054425 | BOLT (#98054425) |
| 27 | 95101231 | FLAT WASHER (#95101231) |
| 28 | 12715400 | ***DIST***N/A (#12715400) |
| 29 | ||
| 30 | 95510318 | PIN (#95510318) |
| 31 | 98106021 | BOLT (98106021) (#98106021) |
| 32 | 95100137 | WASHER (#95100137) |
| 33 | 12716500 | IGNITION COIL (#12716500) USE 40611 |
| 33 | 26716504 | IGNITION COIL W/BRACKET (#26716504) USE 40611 |
| 34 | 98024412 | 98054412 (#98024412) |
| 35 | 92602208 | NUT (#92602208) |
| 36 | ||
| 37 | 12717600 | Cap (#12717600) |
| 38 | 45717600 | CAP (#45717600) |
| 39 | 12718400 | H.T. LEAD (#12718400) |
| 40 | 45717450 | CAP (#45717450) |
| 41 | 12718600 | H.T. LEAD (#12718600) |
| 42 | 55717000 | SPARK PLUG (#55717000) |
| 43 | 12719300 | L.T. LEAD (#12719300) |
| 44 | ||
| 45 | 12730701 | 12730705 (#12730701) |
| 45 | 12730705 | USE 30730711 VALEO STARTER BOSH SYSTEM ONLY (#12730705) |
| 45 | 12731000 | GROUND CBL (#12731000) |
| 46 | 12703801 | REGULATOR MARELLI NLA 7/98 (#12703801) |
| 46 | 12703805 | REGULATOR BOSCH OEM (#12703805) USE 040005 |
| 47 | 12704100 | BRACKET (#12704100) |
| 48 | 98024422 | BOLT (#98024422) |
| 49 | 12704200 | ***GSKT**N/A (#12704200) |
| 50 | ||
| 51 | 12735750 | IG SWITCH COVER (#12735750) |
| 52 | 90706252 | O RING (#90706252) |
| 53 | 12735400 | LOCK RING (#12735400) |
| 54 | 12735500 | KEY E SERIES (#12735500) |
| 55 | 26735001 | PUSH BUTTON (26735001) (#26735001) |
| 56 | 90706163 | O RING (#90706163) |
| 57 | 12734900 | SUPPORT PLATE *USED ONLY* (#12734900) |
| 58 | 12735100 | CAP (#12735100) |
| 59 | 92602206 | NUT (#92602206) USE STHN6MM |
