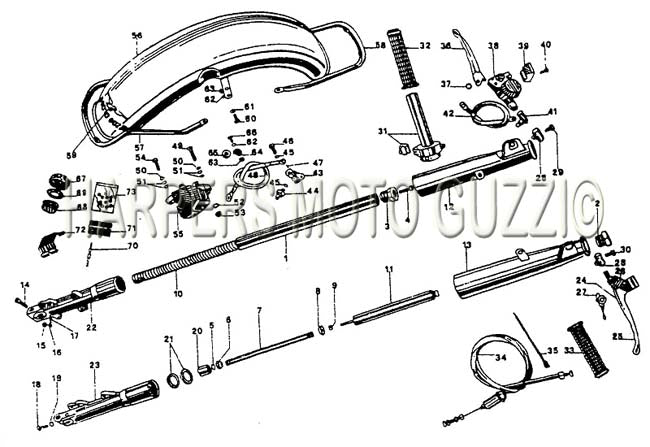

1972 1974 850 Eldorado Front Fork Fender Brake Control
| Position | Part Number | Description |
|---|---|---|
| - | 13490241 | FRONT FORK (#13490241) |
| 1 | 13525441 | FORK TUBE - NLA 1/99 (#13525441) |
| 2 | 13504541 | PLUG (#13504541) |
| 3 | 13504441 | SLEEVE NUT (#13504441) |
| 4 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 5 | 90271014 | RING USE 90271015 (#90271014) |
| 6 | 14527900 | CUP (#14527900) |
| 7 | 14527800 | TUBE (#14527800) |
| 8 | 14526505 | RUBBER RING (#14526505) |
| 9 | 92630106 | NUT USE 92630707 (#92630106) |
| 10 | 14526600 | SPRING EACH (#14526600) |
| 11 | 14526407 | DAMPER (#14526407) |
| 12 | 13496141 | UPPER COVER RH (#13496141) |
| 13 | 13496241 | UPPER COVER LH (#13496241) |
| 14 | 98620540 | SCREW (#98620540) |
| 15 | 92602210 | NUT (#92602210) |
| 16 | 98620312 | OIL DRAIN PLUG ALLEN BOLT (#98620312) |
| 17 | 95100116 | WASHER (#95100116) |
| 18 | 98622535 | SCREW (#98622535) |
| 19 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 20 | 14527600 | NUT (#14527600) USE 18527950 |
| 21 | 90403547 | FORK SEAL- (#90403547) USE 90403449 |
| 22 | 14522502 | 17522520 (#14522502) |
| 23 | 14522602 | 17522620 (#14522602) |
| 24 | 14605505 | CL. LEVER COMPL (#14605505) |
| 25 | 14605705 | CLUTCH LEVER (#14605705) |
| 26 | 14601805 | BRACKET (#14601805) |
| 27 | 13118040 | STARTER LEVER (#13118040) |
| 28 | 14602601 | CLAMP (#14602601) |
| 29 | 98620330 | V/COVER BOLT (#98620330) USE 98680330 |
| 30 | 98622320 | SCREW (#98622320) |
| 31 | 17603400 | TOMMASELLI DUAL THROTTLE ASSY. (#17603400) |
| 32 | 14603500 | RH GRIP (#14603500) |
| 33 | 14603000 | GRIP (#14603000) USE1137800 |
| 34 | 13093050 | CLUTCH CABLE ELDO (#13093050) |
| 35 | 13609660 | 14609650 (#13609660) |
| 36 | 14605605 | BRAKE LEVER (#14605605) |
| 37 | 14605001 | WASHER (#14605001) |
| 38 | 14660200 | MASTER CYLINDER (#14660200) USE 17660253 |
| 39 | 14664000 | CLAMP (#14664000) |
| 40 | 98622318 | SCREW (#98622318) |
| 41 | 14663800 | RUBBER COVER (#14663800) |
| 42 | 13657140 | HOSE NLA (#13657140) |
| 43 | 13656840 | BLOCK (#13656840) |
| 44 | 25657001 | BRAKE LIGHT SWITCH (#25657001) |
| 45 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 46 | 95990033 | BANJO BOLT (#95990033) |
| 47 | 95510311 | PIN (#95510311) |
| 48 | ||
| 49 | 98052545 | SCREW (#98052545) |
| 50 | 95004210 | WASHER (#95004210) |
| 51 | 95100332 | SHIM 0.5 MM (#95100332) |
| 51 | 95100333 | SHIM 0.8 MM (#95100333) |
| 52 | 95129180 | WAVE WASHER (#95129180) |
| 53 | 90602210 | NUT (#90602210) |
| 54 | 98055430 | BOLT (#98055430) |
| 55 | 14653001 | 17652260 ( BR CALIPERS) (#14653001) |
| 56 | 13434341 | FRT. FENDER WHI NLA (#13434341) |
| 57 | 13435741 | BRACE FOR FRONT (#13435741) |
| 58 | 13435941 | BRACE FOR FRONT FENDER V700 AMBASSADOR ELDORADO (#13435941) |
| 59 | ||
| 60 | 98054320 | BOLT (#98054320) |
| 61 | 95000206 | WASHER (#95000206) |
| 62 | 95021106 | WASHER, WAVE (#95021106) |
| 63 | 92602206 | NUT (#92602206) USE STHN6MM |
| 64 | 55436525 | HOLDER (#55436525) |
| 65 | 91551131 | GROMMET (#91551131) |
| 66 | 98054312 | BOLT (#98054312) |
| 67 | 14661100 | CAP (#14661100) |
| 68 | 14661300 | BELLOWS M/C REAR WAS 17661350 (#14661300) |
| 69 | 14661200 | DIAPHRAM (#14661200) |
| 70 | 14654400 | 14654400 pad spring (#14654400) |
| 71 | 14654601 | BRAKE PADS NLS 05/10 (#14654601) |
| 72 | 14655700 | 14654700 (#14655700) |
| 73 | 14659000 | CALIPER KIT (#14659000) |
| 73 | 14659100 | BRAKE PINS KIT 2 PER BAG (#14659100) |
| 73 | 14659200 | BLEEDER SCREW KIT (1 PR) (#14659200) |
| 73 | 14659300 | Master Cyl Kit (14659300) USE 17659350 (#14659300) |
| 73 | 14659400 | LEVER SCREW KIT (#14659400) |
