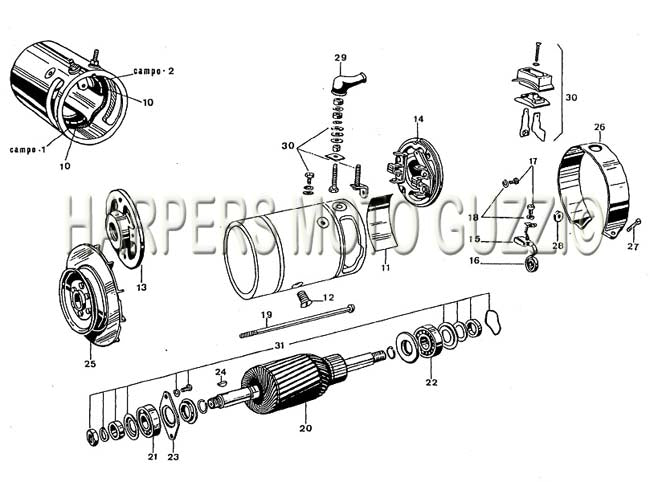

1972 1974 850 Eldorado Generator
| Position | Part Number | Description |
|---|---|---|
| - | 12700205 | GENERATOR (#12700205) |
| 10 | 12700110 | FIELD COIL (#12700110) |
| 11 | 12700111 | INSULATING TAB (#12700111) |
| 12 | 10700224 | SCREW (#10700224) |
| 13 | 12700113 | FRONT COVER (#12700113) |
| 14 | 12700114 | END COVER *NLA* (#12700114) |
| 15 | 12700115 | BRUSH SET (#12700115) |
| 16 | 12700116 | SPRING (#12700116) |
| 17 | 12700117 | SCREW (#12700117) |
| 18 | 12700118 | THRUST WASHER (#12700118) |
| 19 | 12700119 | STAY ROD (#12700119) |
| 20 | 12700120 | ARMATURE (#12700120) |
| 21 | 12700121 | BALL BEARING (#12700121) |
| 22 | 10700217 | BEARING (#10700217) |
| 23 | 12700123 | RETAINING PLATE (#12700123) |
| 24 | 12700124 | WOODRUFF KEY (#12700124) |
| 25 | 12700125 | PULLEY *NLA* (#12700125) |
| 26 | 12700126 | BAND (#12700126) |
| 27 | 12700127 | SCREW (#12700127) |
| 28 | 12700128 | NUT (#12700128) |
| 29 | 10700253 | PROTECTION CAP ****NLA 11/98**** (#10700253) |
| 30 | 12700130 | GENERATOR PARTS KIT (#12700130) |
| 31 | 12700131 | GENERATOR PARTS KIT (#12700131) |
