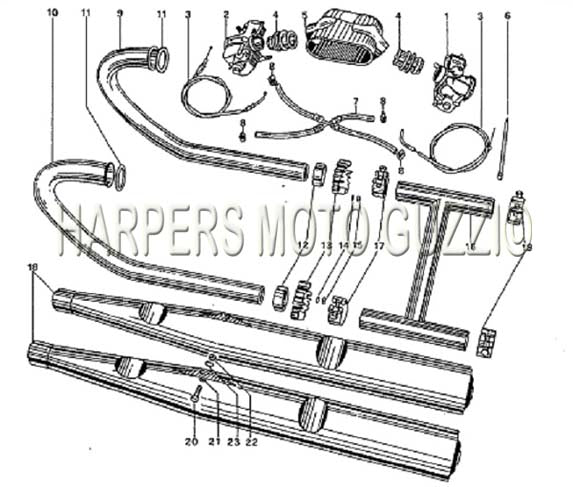

1974 1975 850 T Carburetors Ex Pipes Silencers
| Position | Part Number | Description |
|---|---|---|
| 1 | 14112602 | CARB. RH (#14112602) |
| 2 | 14112603 | CARB. LH (#14112603) |
| 3 | 17117500 | THROTTLE CABLE 850 T,T3,V1000 I CONVERT (#17117500) |
| 4 | 14114401 | AIR INTAKE (#14114401) |
| 5 | 14114300 | CARB BOOT (#14114300) |
| 6 | 13609660 | 14609650 (#13609660) |
| 7 | ||
| 8 | 12108400 | BAND (#12108400) |
| 9 | 14120901 | EXHAUST PIPE RH T,T3,T5,G5,SP,CONV,MILLE GT (#14120901) |
| 10 | 14120906 | EXHAUST PIPE LH T,T3,T5,G5,SP,CONV,MILLE GT (#14120906) |
| 11 | 90718370 | EXHAUST GASKET (#90718370) |
| 12 | 14121200 | SPACER (#14121200) |
| 13 | 14121000 | FLANGE (EX. NUT (#14121000) |
| 14 | 14615901 | WASHER (#14615901) |
| 15 | 92602208 | NUT (#92602208) |
| 16 | 14123901 | EXHAUST CROSSOVER 850T (#14123901) |
| 17 | 14126900 | CLAMP CHROME (#14126900) USE 30123430 |
| 18 | 14122901 | MUFFLER T, T3, CONV, G5 (#14122901) |
| 19 | 14123400 | CLAMP CHROME (#14123400) |
| 20 | 98054420 | BOLT (#98054420) |
| 21 | 95004208 | WASHER (#95004208) |
| 23 | 95021108 | WASHER (#95021108) |
