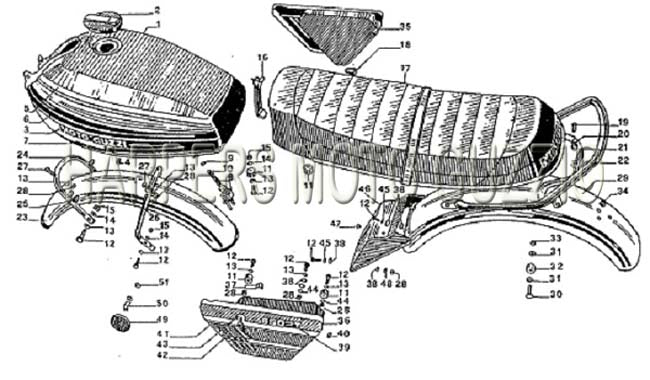

1974 1975 850 T Fuel Tank Boxes Mudguards
| Position | Part Number | Description |
|---|---|---|
| 1 | 17100201 | GAS TANK RED A (#17100201) |
| 1 | 17100202 | TANK (#17100202) |
| 1 | 17100203 | 17100253 (#17100203) |
| 2 | 17476101 | TOOLBOX COVER R (#17476101) |
| 3 | 14917300 | BADGE (#14917300) |
| 4 | 14105100 | HOLDER OR CLIP (#14105100) |
| 5 | 17923500 | DECAL (#17923500) |
| 5 | 17923600 | DECAL (#17923600) |
| 6 | 17923700 | DECAL (#17923700) |
| 6 | 17923800 | DECAL (#17923800) |
| 7 | 17923900 | DECAL (#17923900) |
| 7 | 17924000 | DECAL (#17924000) |
| 8 | 14105400 | RH FUEL TAP (#14105400) |
| 8 | 14105405 | PETCOCK LH (#14105405) USE 17105460 |
| 9 | 90714103 | GASKET FUEL TAP TO GAS TANK (#90714103) |
| 10 | 14106200 | FILTER (#14106200) |
| 11 | 14103800 | BUSH (#14103800) |
| 12 | 98054320 | BOLT (#98054320) |
| 13 | 95000206 | WASHER (#95000206) |
| 14 | 95021106 | WASHER, WAVE (#95021106) |
| 15 | 92602206 | NUT (#92602206) USE STHN6MM |
| 16 | 14102600 | STRAP (#14102600) |
| 17 | 17460500 | SEAT (#17460500) |
| 18 | 14461400 | GRIP (#14461400) |
| 19 | 98054422 | BOLT (#98054422) |
| 20 | 61270300 | WASHER (#61270300) |
| 21 | 92630108 | NUT 8MM (#92630108) |
| 22 | 17464300 | HANDLE SEAT RAIL (#17464300) |
| 23 | 17434400 | FRT. FENDER CHR (#17434400) |
| 24 | 17434500 | FRT. STAY (#17434500) |
| 25 | 91551131 | GROMMET (#91551131) |
| 26 | 17435000 | REAR STAY (#17435000) |
| 27 | 98270625 | SCREW (#98270625) USE 98270627 |
| 28 | 92630106 | NUT USE 92630707 (#92630106) |
| 29 | 17437000 | 17437050 (#17437000) |
| 29 | 17437001 | Rear Mudguard (#17437001) |
| 30 | 98052440 | BOLT (#98052440) |
| 31 | 95000208 | WASHER (#95000208) |
| 32 | 91180816 | SPACER (#91180816) |
| 33 | 92602208 | NUT (#92602208) |
| 34 | 91551081 | GROMMET (#91551081) |
| 35 | 17476001 | TOOLBOX W/COVER (#17476001) |
| 35 | 17476002 | USE 17476003 (#17476002) |
| 35 | 17476003 | TOOLBOX W/COVER (#17476003) |
| 36 | 17476102 | USE 17476103 (#17476102) |
| 36 | 17476103 | COVER LH (#17476103b) |
| 37 | 93301313 | BRACKET (#93301313) |
| 38 | 93110060 | RUBBER WASHER (#93110060) |
| 39 | 17922000 | BADGE 850 T (#17922000) |
| 41 | ||
| 41 | 17924400 | DECAL (#17924400) |
| 42 | 17924500 | DECAL (#17924500) |
| 43 | 12782200 | LOCK SET PIECES NLA (#12782200) USE 12782200A |
| 43 | 14782200 | TOOL BOX LOCK COMPLETE (#14782200) |
| 44 | 95100121 | WASHER (#95100121) |
| 45 | 95100141 | WASHER (#95100141) |
| 46 | 14638700 | 14438700 (#14638700) |
| 47 | 45409701 | PLUG (#45409701) |
| 48 | 93180060 | PLUG (#93180060) |
| 49 | 12781621 | USE 12781521 REFLEX REFLECTO AMBER NLA (#12781621) |
| 50 | 10741640 | PLATE (#10741640) |
| 51 | 95100059 | WASHER (#95100059) |
