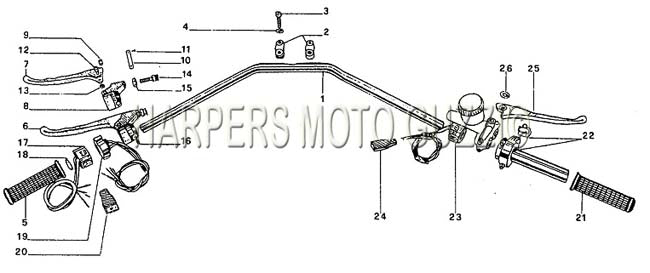

1974 1975 850 T Handle Bar And Controls
| Position | Part Number | Description |
|---|---|---|
| 1 | 17600300 | HANDLEBAR BARE 850T, T3 NLA 09/16/03 (#17600300) |
| 2 | 17500200 | CLAMP (#17500200) |
| 3 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 4 | 95004208 | WASHER (#95004208) |
| 5 | 14603000 | GRIP (#14603000) USE1137800 |
| 6 | 17605501 | LEVER ASSEMBLY (#17605501) USE 17605520 |
| 6 | 17605520 | LEVER ASSEMBLY (#17605520) |
| 7 | 17605701 | CL. LEVER (#17605701) |
| 8 | 17601800 | LEVER ASSEMBLEY (#17601800) USE 17605520 |
| 8 | 17601820 | CL LEVER BRKT (#17601820) USE 17605520 |
| 9 | 17094801 | CABLE END (#17094801) |
| 10 | 17607600 | PLATE (#17607600) |
| 11 | 17607700 | RIVET (#17607700) |
| 12 | 17604900 | PIN (#17604900) |
| 13 | 92630106 | NUT USE 92630707 (#92630106) |
| 14 | 17602400 | ADJ. SCREW (#17602400) |
| 15 | 17602500 | ADJUSTER NUT (#17602500) |
| 16 | 17605200 | PIN (#17605200) |
| 17 | ||
| 18 | 17751100 | RING (#17751100) |
| 19 | 17746001 | Light Switch (#17746001) |
| 19 | 17746020 | LIGHT SWITCH (#17746020) USE 120030 |
| 20 | 17755700 | COVER (#17755700) |
| 21 | 14603500 | RH GRIP (#14603500) |
| 22 | 17603400 | TOMMASELLI DUAL THROTTLE ASSY. (#17603400) |
| 23 | 17735000 | SWITCH NLA (#17735000) USE 120030 or 120040. |
| 24 | 17755800 | COVER FOR SWITCH (#17755800) |
| 25 | 14605605 | BRAKE LEVER (#14605605) |
| 26 | 14605001 | WASHER (#14605001) |
