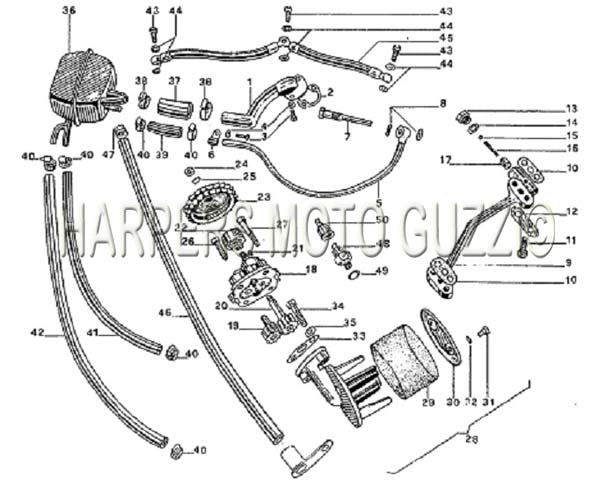

1974 1975 850 T Lubrication
| Position | Part Number | Description |
|---|---|---|
| 1 | 12007200 | BREATHER TUBE (#12007200) |
| 2 | 12007600 | OIL RETURN GASKET (#12007600) |
| 3 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 4 | 95120065 | WASHER (#95120065) |
| 5 | 12006200 | OIL RETURN LINE (#12006200) USE 17006250 |
| 6 | 12006500 | BAND (#12006500) |
| 7 | 12006600 | SCREW (#12006600) |
| 8 | 12006400 | ALUM CRUSH WASHER (#12006400) |
| 9 | 12158400 | OIL PIPE (#12158400) |
| 10 | 12159100 | GASKET (#12159100) |
| 11 | 98054430 | BOLT (#98054430) USE 98052430 |
| 12 | ||
| 13 | 12159000 | PLUG (#12159000) |
| 14 | 95100507 | WASHER (#95100507) |
| 15 | 12150700 | BOTTOM PLATE (#12150700) |
| 16 | 94321072 | SPRING (#94321072) |
| 17 | 12150900 | PISTON (#12150900) |
| 18 | 13146402 | PUMP (#13146402) |
| 19 | 13148400 | GEAR (#13148400) |
| 20 | 13147800 | PUMP GEAR (#13147800) |
| 21 | 13148300 | KEY SQUARE STOCK (#13148300) |
| 22 | 92252210 | BEARING (#92252210) |
| 23 | ||
| 24 | 92602308 | NUT (#92602308) |
| 25 | 95120085 | WASHER (#95120085) |
| 26 | 98620430 | SCREW (#98620430) |
| 27 | 98620445 | SCREW (#98620445) |
| 28 | 12152200 | OIL CLEANER (#12152200) |
| 29 | 12153000 | WIRE GAUZE (#12153000) |
| 30 | 12152600 | BOTTOM PLATE (#12152600) |
| 31 | 98024310 | SCREW (#98024310) |
| 32 | 95021106 | WASHER, WAVE (#95021106) |
| 33 | 12153200 | GASKET (#12153200) |
| 34 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 35 | 95004208 | WASHER (#95004208) |
| 36 | 14145700 | Breather Box (#14145700) USE 14155700 |
| 37 | 14157400 | TUBE 3 LONG (#14157400) |
| 38 | 12157800 | BAND OR CLAMP (#12157800) |
| 39 | 14157500 | OIL BREATHER TUBE (#14157500) USE 00823956080 |
| 40 | 12108400 | BAND (#12108400) |
| 41 | 17159600 | OIL TUBE RH (#17159600) |
| 42 | 17159700 | OIL TUBE (#17159700) |
| 43 | 95990037 | BANJO BOLT (#95990037) |
| 44 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 45 | 14153600 | OIL LINE(#14153600) USE 01153602 |
| 46 | 95985136 | DRAIN TUBE 1/2 IN. (2 FT) (#95985136) |
| 47 | 12157900 | BAND OR CLAMP (#12157900) |
| 48 | 12768700 | OIL SENDING UNIT (#12768700) USE 17768750 |
| 50 | 12717600 | Cap (#12717600) |
