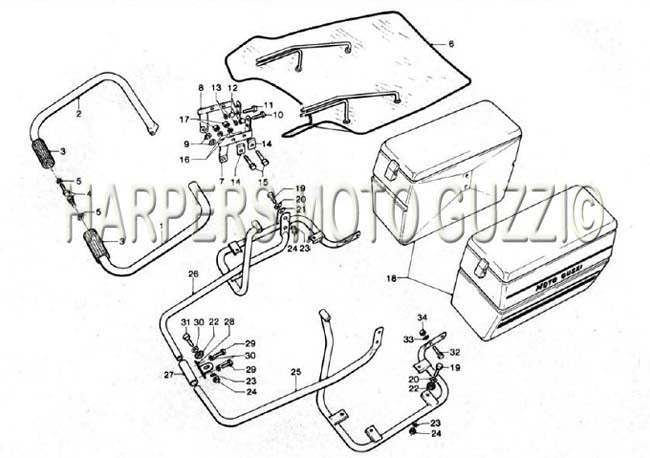

1976 1981 1000 Convert Rear Bar Windshield Bag Holders Bags
| Position | Part Number | Description |
|---|---|---|
| 1 | 18457950 | 18458251 CRASHBAR (#18457950) |
| 2 | 18458650 | LH REAR BAR (#18458650) |
| 3 | 12445890 | FOOTREST RUBBER (#12445890) |
| 4 | 98054520 | BOLT (#98054520) |
| 5 | 95021110 | WASHER (#95021110) |
| 6 | 18577250 | USE 18577251 (#18577250) |
| 7 | 18506850 | RH BRACKET, BLACK (#18506850) |
| 8 | 18506950 | LH BRACKET, BLACK or CHROME(#18506950) |
| 9 | 95100317 | SHIM (#95100317) |
| 10 | 98052430 | BOLT (#98052430) |
| 11 | 98052440 | BOLT (#98052440) |
| 12 | 91180911 | SPACER (#91180911) |
| 13 | 95000208 | WASHER (#95000208) |
| 14 | 18578450 | PLATE - CHROME (#18578450) |
| 15 | 98054425 | BOLT (#98054425) |
| 16 | 95021108 | WASHER (#95021108) |
| 17 | 92602208 | NUT (#92602208) |
| 18 | 18482550 | SADDLEBAGS (#18482550) |
| 19 | 98054320 | BOLT (#98054320) |
| 20 | 95100141 | WASHER (#95100141) |
| 21 | 10488200 | SPACER (#10488200) |
| 22 | 93110060 | RUBBER WASHER (#93110060) |
| 23 | 95021106 | WASHER, WAVE (#95021106) |
| 24 | 92602206 | NUT (#92602206) USE STHN6MM |
| 25 | 18485040 | RH BAG HOLDER (#18485040) |
| 26 | 18486540 | LH BAG HOLDER (#18486540) |
| 27 | 18487740 | SUPPORT (#18487740) |
| 28 | 18488740 | BRACKET (#18488740) |
| 29 | 98054325 | BOLT (#98054325) |
| 30 | 95000206 | WASHER (#95000206) |
| 31 | 98054314 | SCREW (#98054314) |
| 32 | 98054422 | BOLT (#98054422) |
