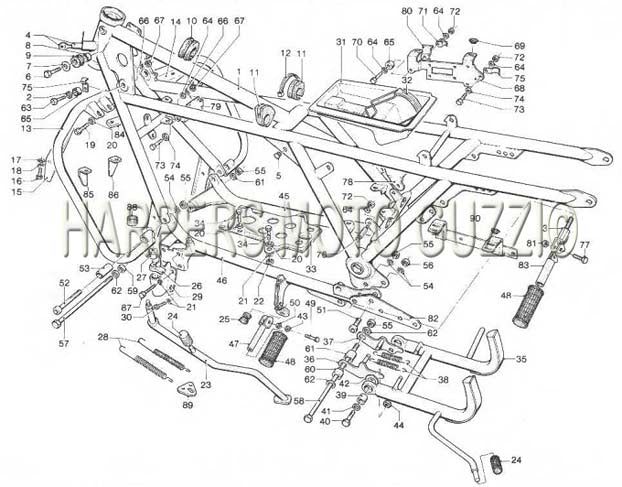

1976 1981 1000 G5 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 17400150 | FRAME (#17400150) |
| 2 | 95100121 | WASHER (#95100121) |
| 3 | 18445460 | REAR FOOTREST SUPPORT (#18445460) |
| 4 | 12782780 | LOCK & KEY (#12782780) |
| 5 | 93180080 | PLUG (#93180080) |
| 6 | 98064425 | BOLT (#98064425) |
| 7 | 95110255 | WASHER (#95110255) |
| 8 | 91180810 | SPACER (#91180810) |
| 9 | 14103400 | TANK BUSHING (#14103400) |
| 10 | 14107100 | RUBBER BUSHING (#14107100) |
| 11 | 14109000 | BUSHING (#14109000) |
| 12 | 14609650 | TIE WRAP (#14609650) |
| 13 | 18450250 | SAFETY BAR 17450235 (#18450250) |
| 14 | 18449456 | USE 18449451 (#18449456) |
| 14 | 18449457 | RH FRONT BAFFLE - BLACK (#18449457) USE 18449451 |
| 15 | 18449557 | L.H. front baffle, black, compl (#18449557) |
| 15 | 18449656 | USE 18449651 (#18449656) |
| 16 | 98054325 | BOLT (#98054325) |
| 17 | 95100139 | WASHERS (#95100139) |
| 18 | 95120065 | WASHER (#95120065) |
| 19 | 98054420 | BOLT (#98054420) |
| 20 | 95004208 | WASHER (#95004208) |
| 21 | 95021108 | WASHER (#95021108) |
| 22 | 92602208 | NUT (#92602208) |
| 23 | 18432060 | SIDE STAND (#18432060) |
| 24 | 13432640 | CENTER STAND/SIDE STAND RUBBER (#13432640) |
| 25 | 12433000 | BUFFER-CENTER STAND STOP (#12433000) |
| 26 | 18432450 | SIDE STAND RETAINER (#18432450) |
| 27 | 18432851 | NUT (#18432851) |
| 28 | 14434000 | SPRING (#14434000) |
| 29 | 13433440 | SUPPORT (#13433440) |
| 30 | 98064418 | BOLT (#98064418) |
| 31 | ||
| 32 | ||
| 33 | 14418200 | BATTERY PLATE (#14418200) |
| 34 | 98054416 | BOLT (#98054416) |
| 35 | 18430360 | CENTER STAND (#18430360) |
| 36 | 14433200 | PLATE USE 0343 3270 LH (#14433200) |
| 37 | 14432900 | PLATE USE 03432970 RH (#14432900) |
| 38 | 18434060 | CENTERSTAND SPRING (#18434060) |
| 39 | 14433500 | BUSHING (#14433500) |
| 40 | 98052545 | SCREW (#98052545) |
| 41 | 95004210 | WASHER (#95004210) |
| 42 | 14433400 | WASHER (#14433400) |
| 43 | 95000208 | WASHER (#95000208) |
| 44 | 92630110 | NUT (#92630110) |
| 45 | 18420360 | RH ARM (#18420360) |
| 46 | 18422160 | FRAME RAIL LH (#18422160) |
| 47 | 18440360 | FOOTREST (#18440360) |
| 48 | 14443200 | FOOT PEG RUBBER (#14443200) |
| 49 | 98054430 | BOLT (#98054430) USE 98052430 |
| 51 | 98663630 | 98623630 (#98663630) |
| 52 | 98661697 | 98621697 (#98661697) |
| 53 | 91181346 | SPACER (#91181346) |
| 54 | 95021112 | WASHER (#95021112) |
| 55 | 92602312 | NUT (#92602312) |
| 56 | 92602512 | NUT (#92602512) |
| 57 | 14429505 | BOLT (#14429505) |
| 58 | 14429600 | BOLT (#14429600) |
| 59 | 91181309 | SPACER (#91181309) |
| 60 | 14429900 | SPACER (#14429900) |
| 61 | 14429800 | SPACER (#14429800) |
| 62 | 95000213 | WASHER (#95000213) |
| 63 | 98054320 | BOLT (#98054320) |
| 64 | 95000206 | WASHER (#95000206) |
| 65 | 14103800 | BUSH (#14103800) |
| 66 | 95021106 | WASHER, WAVE (#95021106) |
| 67 | 92602206 | NUT (#92602206) USE STHN6MM |
| 68 | 17424850 | RH SUPPORT PLATE (#17424850) |
| 69 | 39461600 | SIDE COVER GROMMET (#39461600) |
| 70 | 98052325 | BOLT (#98052325) |
| 71 | 93301175 | CABLE CLAMP (#93301175) |
| 72 | 92630106 | NUT USE 92630707 (#92630106) |
| 73 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 75 | 93301313 | BRACKET (#93301313) |
| 76 | 17478550 | PIN (#17478550) |
| 78 | 17709950 | SUPPORT PLATE (#17709950) |
| 79 | 17704150 | REGULATOR SUPPO (#17704150) |
| 80 | 17750400 | RELAY BRACKET (#17750400) |
| 82 | 18423950 | RR BUMPER BRACE (#18423950) |
| 83 | 14441350 | FOOT PEG PEDAL (#14441350) |
| 84 | 17461750 | Plate (#17461750) |
| 85 | 18449755 | BRACKET (#18449755) |
| 86 | 98062440 | BOLT (#98062440) |
| 87 | 14498550 | PLUG (#14498550) |
| 88 | 18432760 | PLATE (#18432760) |
| 90 | 17424050 | LH SUPPORT PLATE (#17424050) |
