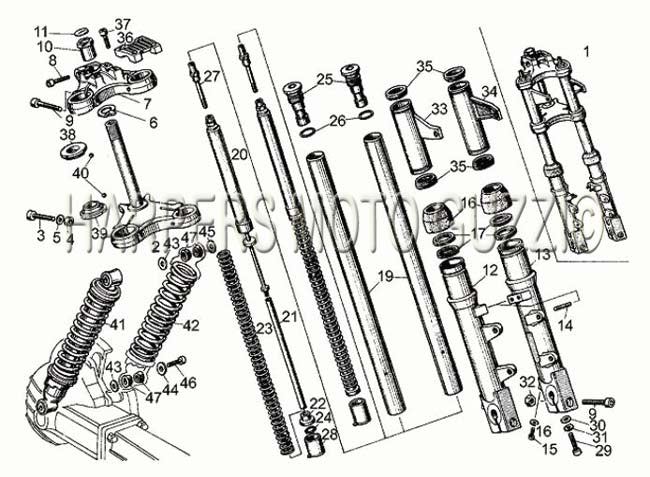

1977 1980 V 35 V 50 Acc. Elettronica 350 500 Front Rear Shock Absorber
| Position | Part Number | Description |
|---|---|---|
| 1 | 19490305 | FRONT FORK C (#19490305) |
| 2 | 39494002 | 19494000 (#39494002) |
| 3 | 98620555 | ALLEN BOLT TREE (#98620555) |
| 4 | 91181110 | BUSHING (#91181110) |
| 5 | 95004210 | WASHER (#95004210) |
| 6 | 62493200 | WASHER (#62493200) |
| 7 | 39493101 | TOP CLAMP (#39493101) |
| 8 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 9 | 98620540 | SCREW (#98620540) |
| 10 | 14516600 | BUSHING (#14516600) |
| 11 | 17517700 | DISC 1415 6600 (#17517700) |
| 12 | 195225001 | RH sleeve (#195225001) |
| 13 | 195226001 | LH sleeve (#195226001) |
| 14 | 96508021 | STUD BOLT (#96508021) |
| 15 | 98620312 | OIL DRAIN PLUG ALLEN BOLT (#98620312) |
| 16 | 95100116 | WASHER (#95100116) |
| 17 | 90403144 | FORK SEAL (#90403144) |
| 18 | 53524540 | DUST GUARD NLA (#53524540) |
| 19 | 39525401 | FORK TUBES PR (#39525401) |
| 20 | 14526407 | DAMPER (#14526407) |
| 21 | 53527840 | DAMPER ROD (#53527840) |
| 22 | 53527940 | TUBE END (#53527940) |
| 23 | 19526600 | FORK SPRING (#19526600) |
| 24 | 90271012 | SNAP RING (#90271012) |
| 25 | 39504501 | UPPER PLUG (#39504501) |
| 26 | 90706202 | SEAL (#90706202) |
| 27 | 19504800 | SCREW (#19504800) |
| 28 | 53527640 | CAP NLA (#53527640) |
| 29 | 98623430 | ALLEN BOLT (#98623430) |
| 30 | 12154200 | OIL LINE CRUSH WASHER (#12154200) |
| 31 | 95004208 | WASHER (#95004208) |
| 32 | 92602210 | NUT (#92602210) |
| 33 | 194961001 | RH headlight supp. (#194961001) |
| 34 | 194962001 | LH headlight supp. (#194962001) |
| 35 | 39492701 | RUBBER RING (#39492701) |
| 36 | 19500200 | CLAMP (#19500200) |
| 37 | 98830430 | SCREW (#98830430) |
| 38 | 61514940 | UPPER CAP (#61514940) |
| 39 | 61515240 | LOWER RACE (#61515240) |
| 40 | 92295704 | BALL (#92295704) |
| 41 | 23999290 | DAMPER SET C (#23999290) |
| 42 | 19552300 | Spring (#19552300) |
| 43 | 95004215 | WASHER (#95004215) |
| 44 | 95100255 | WASHER (#95100255) |
| 45 | 95000208 | WASHER (#95000208) |
| 46 | 98822416 | SCREW (#98822416) |
| 47 | 10551600 | BUSHING RUBBER USE 14502250 (#10551600) |
