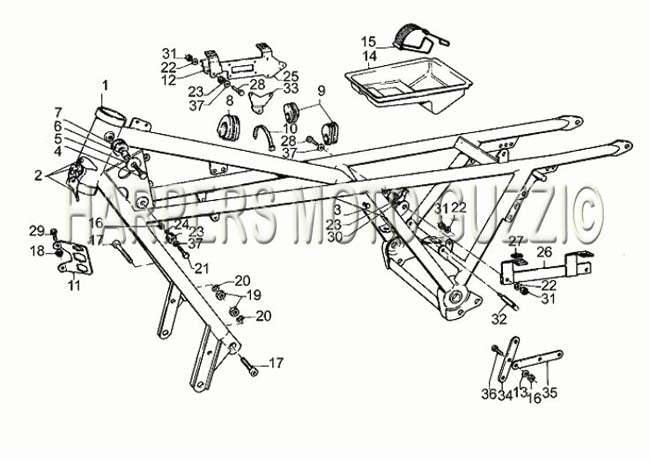

1979 1983 Sp 1000 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 17400150 | FRAME (#17400150) |
| 2 | 28782550 | LOCK (#28782550) |
| 3 | 93180080 | PLUG (#93180080) |
| 4 | 98074425 | BOLT BLACK (#98074425) |
| 5 | 95001208 | WASHER (#95001208) |
| 6 | 91180810 | SPACER (#91180810) |
| 7 | 14103400 | TANK BUSHING (#14103400) |
| 8 | 14107100 | RUBBER BUSHING (#14107100) |
| 9 | 14109000 | BUSHING (#14109000) |
| 10 | 14609650 | TIE WRAP (#14609650) |
| 11 | 14749755 | PLATE (#14749755) |
| 12 | 17750400 | RELAY BRACKET (#17750400) |
| 13 | 95000206 | WASHER (#95000206) |
| 14 | ||
| 15 | ||
| 16 | 92601206 | NUT (#92601206) |
| 17 | 98613630 | SCREW (#98613630) |
| 18 | 92630105 | NUT (#92630105) |
| 19 | 92602312 | NUT (#92602312) |
| 20 | 95022112 | Washer (#95022112) |
| 21 | 98054320 | BOLT (#98054320) |
| 23 | 14103800 | BUSH (#14103800) |
| 24 | 95021106 | WASHER, WAVE (#95021106) |
| 25 | 174248501 | RH plate (#174248501) |
| 26 | 17424050 | LH SUPPORT PLATE (#17424050) |
| 27 | 39461600 | SIDE COVER GROMMET (#39461600) |
| 28 | 98052325 | BOLT (#98052325) |
| 29 | 98054220 | BOLT (#98054220) |
| 30 | 93301313 | BRACKET (#93301313) |
| 31 | 92630106 | NUT USE 92630707 (#92630106) |
| 32 | 17478550 | PIN (#17478550) |
| 33 | 17709950 | SUPPORT PLATE (#17709950) |
| 34 | 14716750 | SUPPORT PLATE (#14716750) |
| 35 | 147040501 | Plate (#147040501) |
| 36 | 98054316 | BOLT (#98054316) USE STHB6X16 |
| 37 | 95100121 | WASHER (#95100121) |
