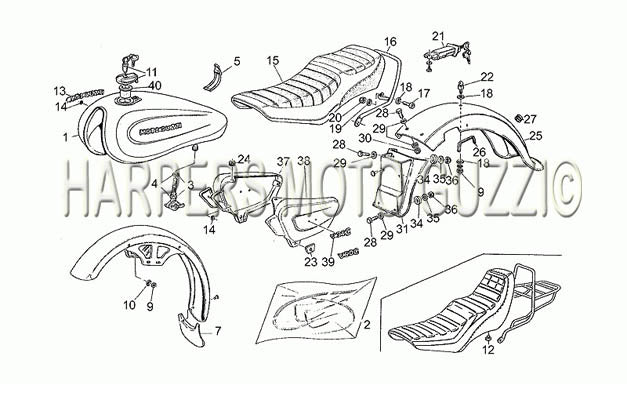

1982 1986 V 35 C V 50 C 350 Body
| Position | Part Number | Description |
|---|---|---|
| 1 | 231002801 | Fuel tank (#231002801) |
| 2 | 23923380 | DECALS (#23923380) |
| 2 | 23923381 | DECALS (#23923381) |
| 2 | 23923382 | DECALS (#23923382) |
| 3 | 65105400 | RH PETCOCK RH (#65105400) |
| 4 | 65105401 | PETCOCK LH (#65105401) |
| 5 | 19102750 | STRAP (#19102750) |
| 7 | 27436920 | #02 Splash guard (#27436920) |
| 9 | 92602208 | NUT (#92602208) |
| 10 | 61270300 | WASHER (#61270300) |
| 11 | 30103960 | GAS CAP (#30103960) |
| 12 | 23461680 | BUFFER (#23461680) |
| 13 | 14917300 | BADGE (#14917300) |
| 14 | 14105100 | HOLDER OR CLIP (#14105100) |
| 15 | 23460580 | SEAT V65C (#23460580) |
| 16 | 23464380 | HAND GRIP (#23464380) |
| 17 | 98822420 | SCREW (#98822420) |
| 18 | 95000208 | WASHER (#95000208) |
| 20 | 92630508 | NUT (#92630508) |
| 21 | 23468780 | SADDLE LOCK (#23468780) |
| 22 | 23462980 | PIN (#23462980) |
| 23 | 19478550 | RUBBER GROMMET LOWER FOR SIDE COVER V35-V50 (#19478550) |
| 24 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
| 25 | 23437080 | RR FENDER CHR (#23437080) |
| 26 | 23438980 | GASKET (#23438980) |
| 27 | 91551102 | GROMMET (#91551102) |
| 28 | 98054320 | BOLT (#98054320) |
| 29 | 95000206 | WASHER (#95000206) |
| 30 | 92602206 | NUT (#92602206) USE STHN6MM |
| 31 | 23438780 | HOUSING (#23438780) |
| 34 | 93110060 | RUBBER WASHER (#93110060) |
| 35 | 95100141 | WASHER (#95100141) |
| 36 | 92630106 | NUT USE 92630707 (#92630106) |
| 37 | 234760801 | RH side panel (#234760801) |
| 38 | 234761801 | LH side panel (#234761801) |
| 39 | 23922020 | Name plate V35C (#23922020) |
| 40 | 62100600 | CAP (#62100600) |
