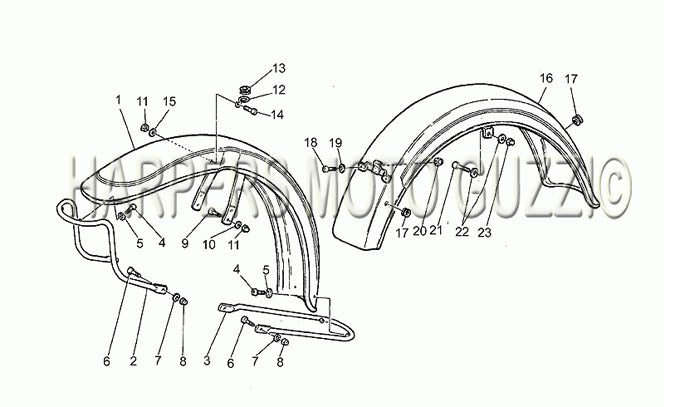

1983 1986 California II 1000 Frame Mudguards
| Position | Part Number | Description |
|---|---|---|
| - | 29434302 | F/FENDER MUDGUARD (#29434302) |
| - | 29434303 | F/FENDER--WHITE (#29434303) |
| - | 29437003 | R/FENDER--RED (#29437003) |
| - | 29437004 | R/FENDER --WHITE (#29437004) |
| - | 98052455 | BOLT (#98052455) |
| 1 | 29434301 | F/FENDER--BLACK (#29434301) |
| 2 | 29435700 | FRONT FENDER BRACE CAL II (#29435700) |
| 3 | 29435900 | LOWER FRONT FENDER SUPPORT (#29435900) |
| 4 | 98822314 | SCREW (#98822314) |
| 5 | 95100121 | WASHER (#95100121) |
| 6 | 98822425 | SCREW (#98822425) |
| 7 | 61270300 | WASHER (#61270300) |
| 8 | 92781081 | CAP NUT (#92781081) USE STCN8MM |
| 9 | 98822318 | ALLEN BOLT (#98822318) |
| 10 | 61013800 | SPRING WASHER (#61013800) |
| 11 | 92781062 | NUT (#92781062) |
| 12 | 55436525 | HOLDER (#55436525) |
| 13 | 91551131 | GROMMET (#91551131) |
| 14 | 98822310 | SCREW (#98822310) |
| 15 | 95021106 | WASHER, WAVE (#95021106) |
| 16 | 29437002 | R/FENDER--BLACK (#29437002) |
| 17 | 91551102 | GROMMET (#91551102) |
| 18 | 98052450 | BOLT (#98052450) |
| 19 | 95004208 | WASHER (#95004208) |
| 22 | 95021108 | WASHER (#95021108) |
| 23 | 92602208 | NUT (#92602208) |
