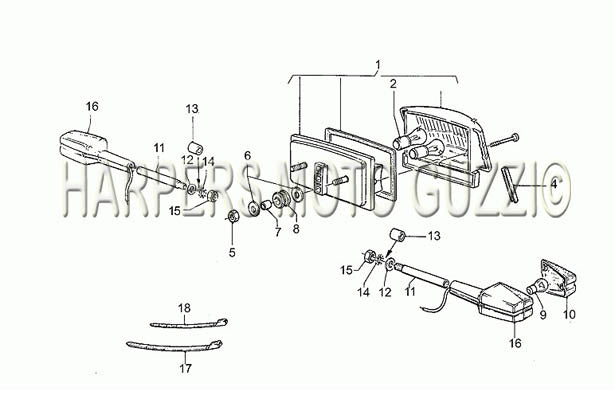

1983 1988 Sp II 1000 Taillight
| Position | Part Number | Description |
|---|---|---|
| 1 | 27740985 | TAIL LAMP (#27740985) |
| 2 | 93450224 | BULB T.L. (#93450224) |
| 4 | 28439800 | GASKET (#28439800) |
| 5 | 92630206 | NUT (#92630206) |
| 6 | 95100118 | WASHER (#95100118) |
| 7 | 91180607 | SPACER (#91180607) |
| 8 | 91551085 | RUBBER BLOCK USE 9155 1086 (#91551085) |
| 9 | 93450129 | BULB (#93450129) |
| 10 | 28753750 | LENS TURN SIGNAL (#28753750) |
| 11 | 28751750 | SUPPORT (#28751750) |
| 12 | 95007210 | WASHER (#95007210) |
| 13 | 91181004 | SPACER A (#91181004) |
| 14 | 95021110 | WASHER (#95021110) |
| 15 | 92602410 | NUT (#92602410) |
| 16 | 28751650 | REAR TS ASSY LM 3 - T/5 (#28751650) |
| 17 | 14609650 | TIE WRAP (#14609650) |
| 18 | 49609601 | TIE STRAP (#49609601) |
