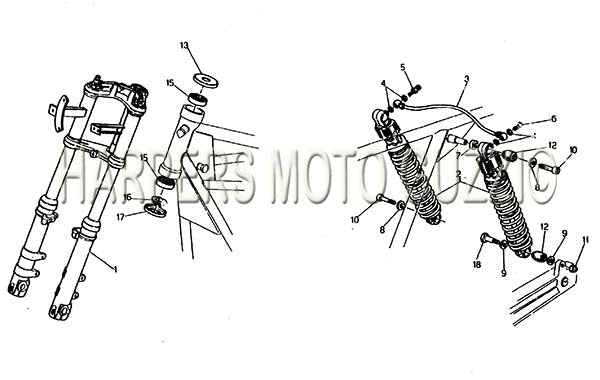

1984 1987 V 65 Lario Front Fork And Rear Suspension
| Position | Part Number | Description |
|---|---|---|
| 1 | 27490220 | Fork ASSY (#27490220) |
| 2 | 23550281 | REAR SUSP. (#23550281) |
| 3 | 19556160 | TUBE (#19556160) |
| 4 | 28556350 | WASHER SPECIAL PLASTIC WASHER (#28556350) |
| 5 | 28556250 | VALVE (#28556250) |
| 6 | 28556450 | SCREW (#28556450) |
| 7 | 91181407 | SPACER (#91181407) |
| 8 | 95100256 | WASHER (#95100256) |
| 9 | 95004210 | WASHER (#95004210) |
| 10 | 98822416 | SCREW (#98822416) |
| 11 | 92602410 | NUT (#92602410) |
| 12 | 14551655 | BUSHING (#14551655) |
| 13 | 14494600 | CUP (#14494600) |
| 15 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 16 | 14516700 | SHIM (#14516700) |
| 17 | 14517000 | RING DUST SEAL (#14517000) |
| 18 | 23555280 | STUD (#23555280) |
