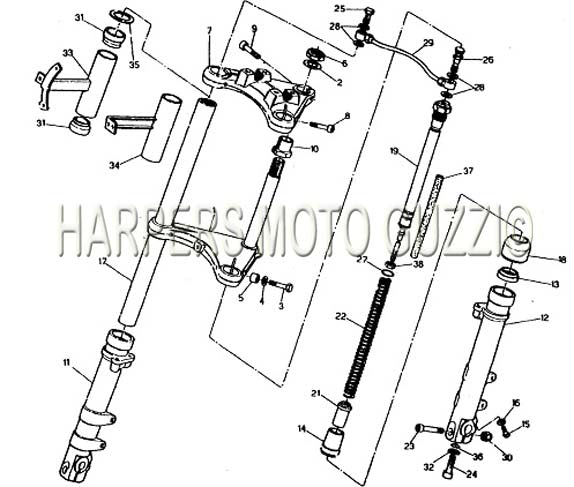

1984 1987 V 65 Lario Front Fork Parts
| Position | Part Number | Description |
|---|---|---|
| 1 | 27494020 | LOWER T-CLAMP (#27494020) |
| 2 | 18513560 | SHIM (#18513560) |
| 3 | 98072555 | BOLT BLACK (#98072555) |
| 4 | 95007210 | WASHER (#95007210) |
| 5 | 91181016 | SPACER (#91181016) |
| 6 | 18513460 | NUT (#18513460) |
| 7 | 27493120 | UPPER T-CLAMP (#27493120) |
| 8 | 98610540 | BOLT (#98610540) |
| 9 | 98612535 | SCREW BLACK (#98612535) |
| 10 | 18516660 | BUSHING (#18516660) |
| 11 | 27522520 | RH SLIDER B (#27522520) |
| 12 | 27522620 | FORK SLIDER (#27522620) |
| 13 | 90403447 | FORK SEAL (#90403447) USE 90403449 |
| 14 | 27527620 | SLEEVE A (#27527620) |
| 15 | 98622325 | BOLT CHROME (#98622325) |
| 16 | 95100116 | WASHER (#95100116) |
| 17 | 27525420 | FORK TUBE B (#27525420) |
| 18 | 14524500 | FORK DUST COVERS (#14524500) |
| 19 | 27526420 | DAMPER A (#27526420) |
| 21 | 27527520 | BUFFER (#27527520) |
| 22 | 27526620 | LOWER SPRING (#27526620) |
| 23 | 98620545 | ALLEN BOLT (#98620545) |
| 24 | 98622525 | BOLT (#98622525) |
| 25 | 28556450 | SCREW (#28556450) |
| 26 | 28556250 | VALVE (#28556250) |
| 27 | 90706260 | O RING (#90706260) USE 90706266 |
| 28 | 28556350 | WASHER SPECIAL PLASTIC WASHER (#28556350) |
| 29 | 19529660 | TUBE (#19529660) |
| 30 | 92781100 | CAP NUT CHROME (#92781100) |
| 31 | ||
| 32 | 27499120 | WASHER A (#27499120) |
| 33 | 27496120 | RH H/L MOUNT A (#27496120) |
| 34 | 27496220 | LH H/L MOUNT A (#27496220) |
| 35 | 14492355 | CUP (#14492355) |
| 36 | 90706090 | O RING (#90706090) USE 90706094 |
| 37 | 27526320 | TUBE A (#27526320) |
| 38 | 92602308 | NUT (#92602308) |
