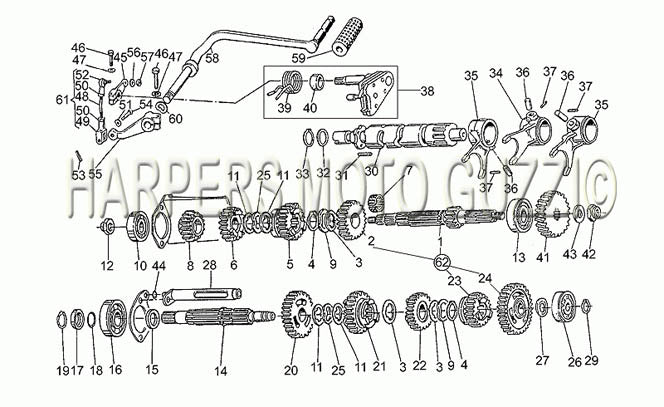

1986 1992 V 65 Florida 650 Gear Box
| Position | Part Number | Description |
|---|---|---|
| 1 | 19210561 | MAIN SHAFT (#19210561) |
| 1 | 23210570 | Primary Gear Shaft (#23210570) |
| 2 | 19212061 | 5TH GEAR (#19212061) |
| 2 | 23212070 | #02 Gear 5a AP Z=20 (#23212070) |
| 3 | 19215460 | WASHER (#19215460) |
| 4 | 90271127 | SNAP RING (#90271127) |
| 5 | 19211861 | 4TH GEAR (#19211861) |
| 6 | 19211460 | Gear 3rd (#19211460) |
| 7 | 92251023 | CAGE (#92251023) |
| 8 | 19211361 | 2ND GEAR (#19211361) |
| 9 | 19218062 | WASHER (#19218062) |
| 10 | 92218417 | Transmission Bearing Small Block Guzzi (#92218417) |
| 11 | 19214660 | WASHER (#19214660) |
| 12 | 10054100 | NUT-MAINSHAFT, SMALL BLOCK TRANSMISSION (#10054100) |
| 13 | 92230320 | BEARING (#92230320) |
| 14 | 19213661 | LAYSHAFT (#19213661) |
| 15 | 19212900 | SPACER (#19212900) |
| 16 | 92201220 | BEARING (#92201220) |
| 17 | 19213720 | SPACER (#19213720) |
| 18 | 90706188 | O RING (#90706188) |
| 19 | 90271121 | CIRCLIP (#90271121) |
| 20 | 23214571 | GEAR 2ND (#23214571) |
| 21 | 19214860 | 3RD GEAR (#19214860) |
| 22 | 19215161 | 4TH GEAR (#19215161) |
| 23 | 19215261 | 5TH GEAR (#19215261) |
| 23 | 23215270 | Gear (#23215270) |
| 24 | 19214063 | #24 Gear 1a AS Z=26 (#19214063) |
| 24 | 23214071 | #24 Gear 1a AS Z=26 (#23214071) |
| 25 | 19218061 | WASHER (#19218061) |
| 26 | 92234716 | BEARING (#92234716) |
| 27 | 10214301 | Spacer (#10214301) |
| 27 | 10214302 | Spacer (#10214302) |
| 27 | 10214303 | Spacer (#10214303) |
| 27 | 10214304 | WASHER (#10214304) |
| 27 | 10214305 | Spacer (#10214305) |
| 28 | 23202074 | CHANNEL A (#23202074) |
| 29 | 90271117 | SNAP RING (#90271117) |
| 30 | 19234420 | SHIFT DRUM (#19234420) |
| 31 | 19234600 | PIN (#19234600) |
| 32 | 19355360 | WASHER (#19355360) |
| 33 | 90271020 | CIRCLIP (#90271020) |
| 34 | 19231220 | M.S. FORK (#19231220) |
| 35 | 19231020 | L.S. FORK (#19231020) |
| 36 | 92297909 | LATE ROLLER (#92297909) |
| 37 | 95520316 | PIN (#95520316) |
| 38 | 20999520 | PRESELECTOR KIT B (#20999520) |
| 39 | 28238261 | SHIFT RETURN SPRING (#28238261) |
| 39 | 61238200 | SPRING (#61238200) |
| 40 | 20208520 | SPACER (#20208520) |
| 40 | 91182010 | BUSH (#91182010) |
| 41 | 19211160 | IDLE GEAR (#19211160) |
| 43 | 39238100 | WASHER (#39238100) |
| 44 | 90706040 | O RING (#90706040) |
| 45 | 19258220 | LINKAGE (#19258220) |
| 46 | 98052325 | BOLT (#98052325) |
| 47 | 95021106 | WASHER, WAVE (#95021106) |
| 48 | 18257950 | DRAG LINK ROD (#18257950) |
| 49 | 12626800 | FORK (#12626800) |
| 50 | 92602206 | NUT (#92602206) USE STHN6MM |
| 51 | 95129110 | WASHER (#95129110) |
| 52 | 18258101 | BALL JOINT (#18258101) use 32258110 |
| 53 | 95500222 | SPLIT PIN (#95500222) |
| 54 | 95770265 | PIN (#95770265) |
| 55 | 19256920 | LINKAGE (#19256920) |
| 56 | 61013800 | SPRING WASHER (#61013800) |
| 57 | 92630106 | NUT USE 92630707 (#92630106) |
| 58 | 19250900 | LEVER (#19250900) |
| 59 | 14251001 | SHIFT AND BRAKE PEDAL RUBBER (#14251001) |
| 60 | 95129260 | SPRING WASHER (#95129260) |
| 61 | 19257701 | #61 Change gear tie rod compl. (#19257701) |
| 62 | 23210170 | #24 Flange modification kit (#23210170) |
