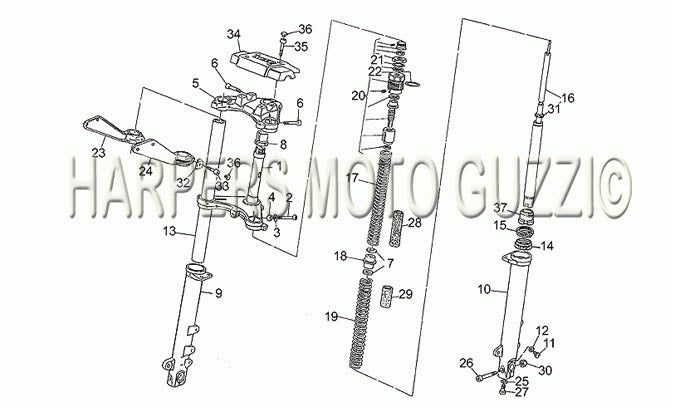

1987 1993 California III Carbureted Adj Front Fork 2nd Series
| Position | Part Number | Description |
|---|---|---|
| 1 | 30494060 | FORK BASE B (#30494060) |
| 2 | 98620560 | SCREW (#98620560) |
| 3 | 95004210 | WASHER (#95004210) |
| 4 | 91181110 | BUSHING (#91181110) |
| 5 | 29493150 | FORK CROWN A (#29493150) |
| 6 | 98620540 | SCREW (#98620540) |
| 7 | 95004217 | WASHER (#95004217) |
| 8 | 18516660 | BUSHING (#18516660) |
| 9 | 29522550 | RH FORK LEG B (#29522550) |
| 10 | 29522650 | LH FORK LEG B (#29522650) |
| 11 | 98622316 | SCREW (#98622316) |
| 12 | 95100116 | WASHER (#95100116) |
| 13 | 29525450 | FORK TUBE EACH (#29525450) |
| 14 | 90403952 | FORK SEALS (#90403952) |
| 15 | 29524550 | WIPER RING (#29524550) |
| 16 | 29525360 | DAMPER ASSY C (#29525360) |
| 17 | 29526960 | TOP FORK SPRING (#29526960) |
| 18 | 29527960 | BUSHING (#29527960) |
| 19 | 29526650 | LOWER SPRINGS (#29526650) |
| 20 | ||
| 21 | 90706235 | O RING (#90706235) |
| 22 | 90706282 | O RING (#90706282) |
| 23 | 29496150 | H/L BRKT RH (#29496150) |
| 24 | 29496250 | H/L BRKT LH (#29496250) |
| 25 | 10528900 | CRUSH WASHER, COPPER (#10528900) |
| 26 | 98820540 | BOLT (#98820540) |
| 27 | 98622525 | BOLT (#98622525) |
| 28 | 29526360 | UPPER TUBE (#29526360) |
| 29 | 29526361 | LOWER TUBE (#29526361) |
| 30 | 92781100 | CAP NUT CHROME (#92781100) |
| 31 | 28526590 | NYLON WASHER (#28526590) |
| 32 | 23497910 | SPACER (#23497910) |
| 33 | 98622425 | ALLEN BOLT (#98622425) |
| 34 | 23500210 | HANDLEBAR CLAMP A (#23500210) |
| 35 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 36 | 23943410 | CHROME PLUG (#23943410) |
| 37 | 28527633 | BUFFER (#28527633) |
