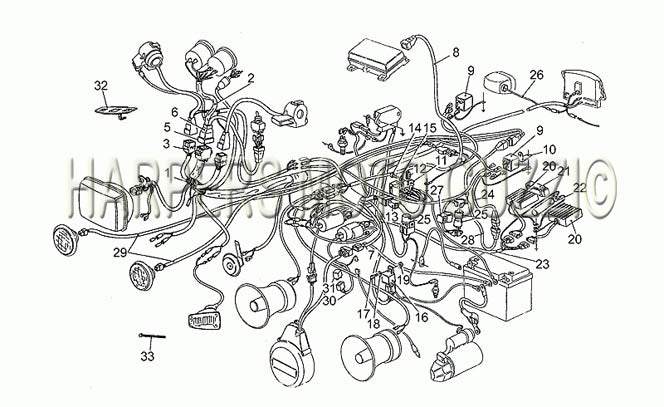

1988 1995 V 65 Polizia pa nuovotipo 650 Magura Controls El System
| Position | Part Number | Description |
|---|---|---|
| 1 | 23747190 | Main wiring harness (#23747190) |
| 2 | 23747290 | CABLES (#23747290) |
| 3 | 65723001 | CONNECTOR (#65723001) |
| 5 | 14756250 | CONNECTOR (#14756250) |
| 6 | 17756000 | COVER (#17756000) |
| 7 | 28726301 | CABLE HARNESS (#28726301) |
| 8 | 23726190 | Siren wiring (#23726190) |
| 9 | 28732545 | #15 Siren relay SWF (#28732545) |
| 10 | 28732946 | #16 Relais support (#28732946) |
| 11 | 30743000 | FUSE BOX ASSY A (#30743000) |
| 12 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 13 | 19721700 | BLOCK (#19721700) |
| 14 | 98202516 | SCREWS (#98202516) |
| 15 | 95100059 | WASHER (#95100059) |
| 16 | 19732500 | HORN, HL OR STARTER RELAY (#19732500) |
| 17 | 98054210 | BOLT (#98054210) |
| 18 | 95129100 | WASHER (#95129100) |
| 19 | 92602205 | NUT (#92602205) |
| 20 | 23721493 | ECU elettronica (#23721493) |
| 21 | 27723835 | SUPPORT (#27723835) |
| 22 | 27710435 | CONDENSER A (#27710435) |
| 23 | 23722190 | Electronic ignition cable (#23722190) |
| 24 | 23757890 | Control unit feeder cable (#23757890) |
| 25 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 26 | 28753145 | #26 Turn ind.harness (#28753145) |
| 27 | 17751200 | FLASHER HOLDER (#17751200) |
| 28 | 23752690 | Intermittence wiring (#23752690) |
| 29 | 23720190 | #46 Wiring 1 LAMP. (#23720190) |
| 30 | 23757690 | Coil disconnection cable (#23757690) |
| 31 | 29732550 | RELAY (#29732550) |
| 32 | 23749790 | Plate (#23749790) |
| 33 | 14609650 | TIE WRAP (#14609650) |
