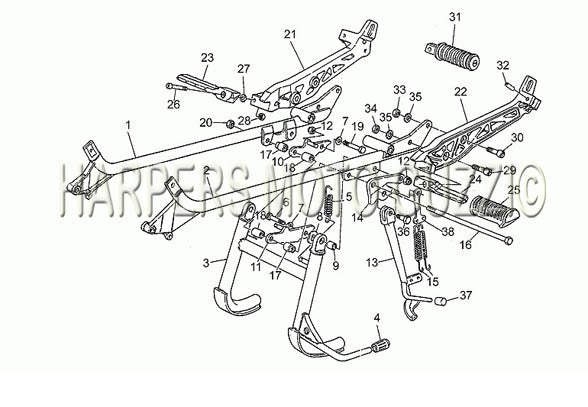

1989 1994 S 1000 Footrests Stands
| Position | Part Number | Description |
|---|---|---|
| 1 | 14420371 | FRAME RAIL RH G B (#14420371) |
| 1 | 284203601 | #01 RH Sidestand (#284203601) |
| 2 | 14422171 | FRAME RAIL LH G B (#14422171) |
| 2 | 284221601 | #02 LH Sidestand (#284221601) |
| 3 | 28430360 | CENTER STAND (#28430360) |
| 4 | 13432640 | CENTER STAND/SIDE STAND RUBBER (#13432640) |
| 5 | 12434001 | SPRING (#12434001) |
| 6 | 98052545 | SCREW (#98052545) |
| 7 | 95004210 | WASHER (#95004210) |
| 8 | 14433400 | WASHER (#14433400) |
| 9 | 14433500 | BUSHING (#14433500) |
| 10 | 14432900 | PLATE USE 03432970 RH (#14432900) |
| 11 | 14433200 | PLATE USE 0343 3270 LH (#14433200) |
| 12 | 92630110 | NUT (#92630110) |
| 13 | 284321631 | 28432163 Lateral stand (#284321631) |
| 14 | 28434162 | PLATE (#28434162) |
| 15 | 17434060 | SPRING (#17434060) |
| 16 | 14429600 | BOLT (#14429600) |
| 17 | 14429900 | SPACER (#14429900) |
| 18 | 14429800 | SPACER (#14429800) |
| 19 | 98052555 | BOLT (#98052555) |
| 20 | 92602312 | NUT (#92602312) |
| 21 | 284435601 | #21 RH footrest (#284435601) |
| 22 | 284460601 | #22 LH footrest (#284460601) |
| 23 | 28440760 | RH PEG (#28440760) |
| 24 | 28441860 | LH FOOTPEG (#28441860) |
| 25 | 28443201 | 28443201 Rubber pedal (#28443201) |
| 26 | 98620435 | SCREW USE 9868 0435 (#98620435) |
| 27 | 61270300 | WASHER (#61270300) |
| 28 | 92630508 | NUT (#92630508) |
| 29 | 98613640 | BOLT (#98613640) |
| 30 | 98813635 | BOLT (#98813635) |
| 31 | 28442310 | REAR FOOTPEG (#28442310) |
| 32 | 28446860 | ROLL PIN (#28446860) |
| 33 | 92602512 | NUT (#92602512) |
| 35 | 95021112 | WASHER (#95021112) |
| 36 | 99105129 | BOLT (#99105129) |
| 37 | 14423800 | RUBBER (#14423800) |
| 38 | 28432760 | PLATE (#28432760) |
