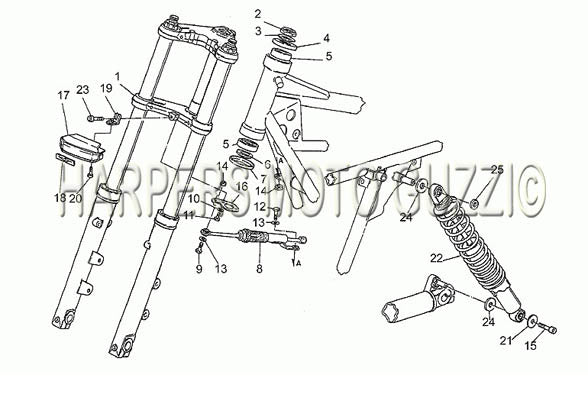

1989 1994 S 1000 Front Rear Shock Absorber
| Position | Part Number | Description |
|---|---|---|
| 1 | 14490272 | FRONT FORK ASSY C (#14490272) |
| 2 | 14513470 | NUT, FORK CROWN A (#14513470) |
| 3 | 18513560 | SHIM (#18513560) |
| 4 | 14494600 | CUP (#14494600) |
| 5 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 6 | 14516700 | SHIM (#14516700) |
| 7 | 14517000 | RING DUST SEAL (#14517000) |
| 8 | 17530260 | STEERING DAMPER (#17530260) |
| 9 | 98052325 | BOLT (#98052325) |
| 10 | 95021106 | WASHER, WAVE (#95021106) |
| 11 | 98054314 | SCREW (#98054314) |
| 12 | 98054320 | BOLT (#98054320) |
| 13 | 95000206 | WASHER (#95000206) |
| 14 | 92630106 | NUT USE 92630707 (#92630106) |
| 15 | 98612416 | ALLEN BOLT A (#98612416) |
| 16 | 285289501 | plate (#285289501) |
| 17 | 62497820 | COVER ACROSS FRONT FORKS (#62497820) |
| 18 | 23769510 | BIRD (#23769510) |
| 19 | 29578800 | BRACKET (#29578800) |
| 20 | 98326016 | SCREW, PAN HEAD (#98326016) |
| 21 | 95100239 | WASHER (#95100239) |
| 22 | 28550263 | KONI REAR SHOCK 13 1/2 (#28550263) |
| 24 | 95100535 | WASHER (#95100535) |
| 25 |
