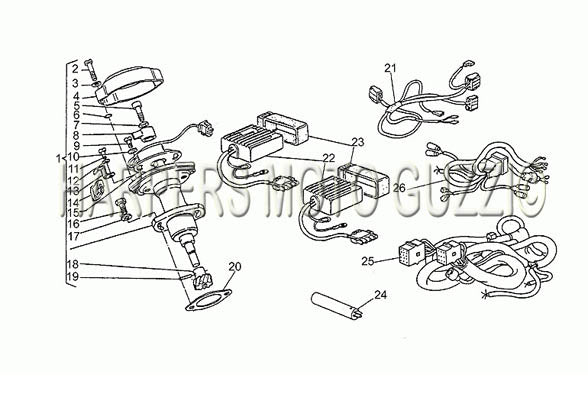

1989 1994 S 1000 Ignition Unit 1991 D
| Position | Part Number | Description |
|---|---|---|
| 1 | 29715470 | IGNITION UNIT (#29715470) |
| 2 | 98202525 | SCREW (#98202525) |
| 3 | 95129100 | WASHER (#95129100) |
| 4 | 29714870 | DISTRIBUTOR COVER (#29714870) |
| 5 | 98622316 | SCREW (#98622316) |
| 6 | 90706040 | O RING (#90706040) |
| 7 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 8 | 29721070 | ROTOR (#29721070) |
| 9 | 98305012 | PICK-UP SCREW (#98305012) |
| 10 | 95000205 | WASHER (#95000205) |
| 11 | 98200410 | SCREW (#98200410) |
| 12 | 95129080 | WASHER (#95129080) |
| 13 | 29712970 | CLAMP (#29712970) |
| 14 | 29710270 | GROMMET (#29710270) |
| 15 | 29722270 | ELECTRONIC IGNITION PICKUP (#29722270) |
| 16 | 98054425 | BOLT (#98054425) |
| 17 | 95000208 | WASHER (#95000208) |
| 18 | 14716200 | GEAR (#14716200) |
| 19 | 95510318 | PIN (#95510318) |
| 20 | 12715901 | GASKET (#12715901) |
| 21 | 29722170 | HARNESS (#29722170) |
| 22 | 30721414 | IGNITION BOX C (#30721414) |
| 23 | 27723835 | SUPPORT (#27723835) |
| 24 | 27710435 | CONDENSER A (#27710435) |
| 25 | 29747171 | WIRING HARNESS A (#29747171) |
| 26 |
