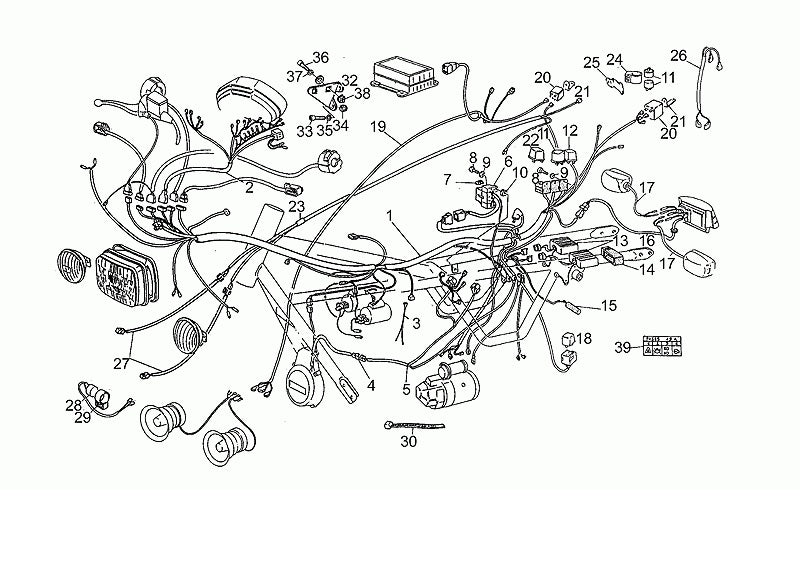

1992 1996 V 75 PA Vecchio Tipo 750 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 19747116 | Electrical system (#19747116) |
| 1 | 23747191 | Electrical system (#23747191) |
| 2 | 29747260 | DASH HARNESS (#29747260) |
| 3 | 31724540 | #16 Neutral sensor cable (#31724540) |
| 4 | 23726300 | #23 Alternator wiring BOSCH (#23726300) |
| 5 | 23725891 | Alternator-regulator wiring (#23725891) |
| 6 | 30743000 | FUSE BOX ASSY A (#30743000) |
| 7 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 8 | 98202516 | SCREWS (#98202516) |
| 9 | 95100059 | WASHER (#95100059) |
| 10 | 92660501 | CAGE NUT (#92660501) |
| 11 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 12 | 30732510 | RELAY (#30732510) |
| 13 | 23721493 | ECU elettronica (#23721493) |
| 14 | 27723835 | SUPPORT (#27723835) |
| 15 | 27710435 | CONDENSER A (#27710435) |
| 16 | 30747310 | T/L HARNESS (#30747310) |
| 17 | 28753145 | #26 Turn ind.harness (#28753145) |
| 18 | 29732550 | RELAY (#29732550) |
| 19 | 23726191 | Two-tone siren wiring (#23726191) |
| 20 | 28732545 | #15 Siren relay SWF (#28732545) |
| 21 | 28732946 | #16 Relais support (#28732946) |
| 22 | 28732560 | RELAY (#28732560) |
| 23 | 23757791 | #45 Intermittence wiring (#23757791) |
| 24 | 17751200 | FLASHER HOLDER (#17751200) |
| 25 | 17750400 | RELAY BRACKET (#17750400) |
| 26 | 18720150 | CABLES (#18720150) |
| 27 | 23720190 | #46 Wiring 1 LAMP. (#23720190) |
| 28 | 28787247 | BEEPER (#28787247) |
| 29 | 30787310 | MOUNT (#30787310) |
| 30 | 14609650 | TIE WRAP (#14609650) |
| 32 | 31704061 | #15 Relais support (#31704061) |
| 33 | 98622214 | SCREW (#98622214) |
| 34 | 92630105 | NUT (#92630105) |
| 35 | 95004205 | WASHER (#95004205) |
| 36 | 98230510 | ALLEN BOLT (#98230510) |
| 37 | 95100064 | Washer 5,5X16X0,8 (#95100064) |
| 39 | 30945000 | DECAL FUSEBOX A (#30945000) |
