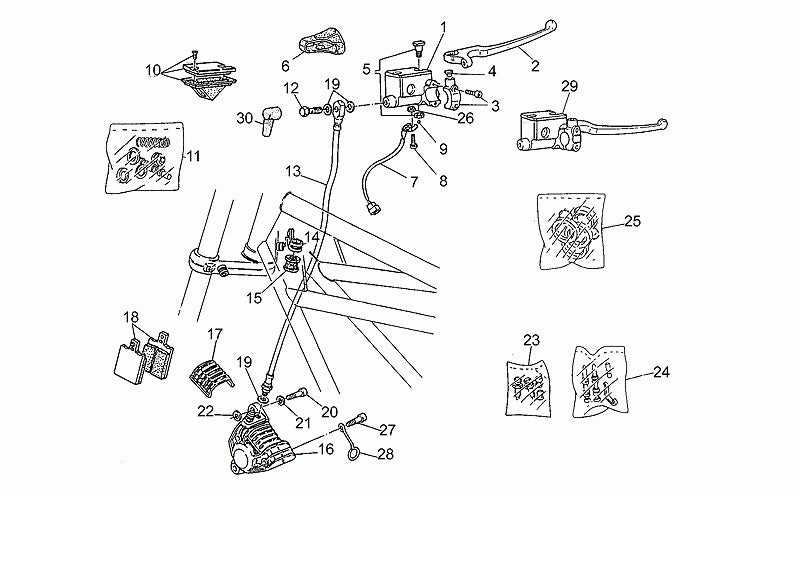

1992 1996 V 75 PA Vecchio Tipo 750 Front Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 28660278 | MASTER CYLINDER (#28660278) |
| 2 | 28605678 | BRAKE LEVER (28605678) (#28605678) |
| 3 | 27664075 | HALF CLAMP (#27664075) |
| 4 | 93180080 | PLUG (#93180080) |
| 5 | 27604815 | LEVER PIN (#27604815) |
| 6 | 27663615 | RUBBER USE BREMBO #110.3530.40 (#27663615) |
| 7 | 27749815 | MICROSWITCH (#27749815) |
| 8 | 98200214 | SCREW (98200214) (#98200214) |
| 9 | 92295708 | BALL (#92295708) |
| 10 | 27661115 | MASTER CYL LID KIT (#27661115) |
| 11 | 28659378 | MASTER CYL KIT (#28659378) |
| 12 | 95990028 | SCREW (#95990028) |
| 13 | 27657135 | BRAKE HOSE (#27657135) |
| 14 | 17658360 | CLAMP (#17658360) |
| 15 | 17658260 | RUBBER RING (#17658260) |
| 16 | 31652365 | LH front brake caliper Grimeca (#31652365) |
| 17 | 31654765 | Brake caliper cover GRIMECA (#31654765) |
| 17 | 39654700 | COVER (#39654700) |
| 18 | 27654610 | PAD SET (#27654610) |
| 18 | 31654665 | Pads pair GRIMECA (#31654665) |
| 19 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 20 | 98622422 | SCREW (#98622422) |
| 21 | 61270300 | WASHER (#61270300) |
| 22 | 95100250 | SHIM (#95100250) |
| 22 | 95100251 | WASHER (#95100251) |
| 23 | 31659265 | Bleeder+cap GRIMECA (#31659265) |
| 23 | 65659200 | BLEEDER KIT (#65659200) |
| 24 | 31659165 | Pins+spring GRIMECA (#31659165) |
| 24 | 39659100 | REV KIT (#39659100) |
| 25 | 39659000 | CALIPER REVISION KIT (#39659000) |
| 25 | 66659031 | Brake caliper rev. kit GRIMECA (#66659031) |
| 26 | 92601002 | NUT (#92601002) |
| 27 | 98622425 | ALLEN BOLT (#98622425) |
| 28 | 23655770 | #28 Cable-'ide (#23655770) |
| 29 | 28660178 | MASTER CYL ASSY B (#28660178) |
| 30 | 39663801 | DUST CAP (#39663801) |
