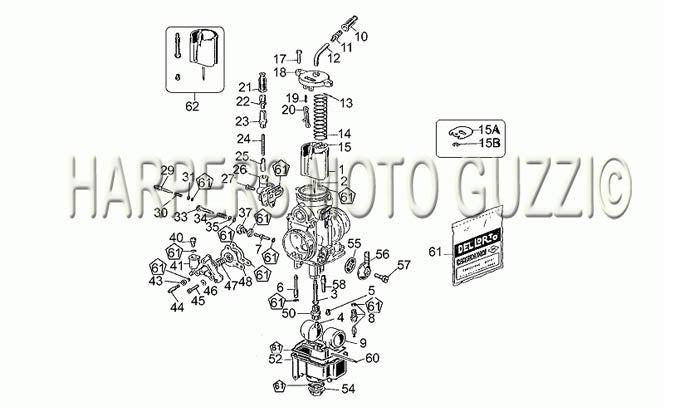

1994 1996 Sport Carburated 1100 Carburetor
| Position | Part Number | Description |
|---|---|---|
| 1 | 37937505 | SLIDE 60/5 (#37937505) |
| 1 | 37937520 | SLIDE 50/3 (#37937520) |
| 2 | 17937767 | SLIDE NEEDLE K27 (#17937767) |
| 2 | 28937750 | SLIDE NEEDLE K18 (#28937750) |
| 3 | 28935590 | ATOMIZER #AB266 (#28935590) |
| 3 | 37935520 | ATOMIZER #265AB1 (#37935520) |
| 4 | 37935705 | USE 6413152 (#37935705) |
| 5 | 13935900 | 148645 (#13935900) |
| 5 | 28935960 | #57 MAIN JET (#28935960) use 148657 |
| 5 | 37935920 | USE 148652 (#37935920) |
| 6 | 19936000 | STARTER JET #60 (#19936000) |
| 7 | 28939060 | PUMP JET #35 (#28939060) |
| 8 | 14939150 | NEEDLE VALVE (#14939150) |
| 9 | 14933000 | FLOATS - ALL BIG BLOCK (#14933000) |
| 10 | 37937005 | RUBBER BOOT A (#37937005) |
| 14 | 37937106 | THROTTLE SPRING (#37937106) |
| 17 | 14934650 | SCREW (#14934650) |
| 19 | 14938050 | SPRING (#14938050) |
| 20 | 14938150 | LEVER ACCEL PUMP 30,32,34MM (#14938150) |
| 21 | 13937000 | PROTECT CAP CABLE BOOT (#13937000) |
| 24 | 39937600 | SPRING (#39937600) |
| 25 | 13937800 | VALVE CHOKE (#13937800) |
| 29 | 30936210 | MIXTURE SCREW (#30936210) |
| 31 | 65933700 | WASHER (#65933700) |
| 33 | 13936600 | SCREW (#13936600) |
| 34 | 13936700 | SPRING (#13936700) |
| 35 | 14931650 | WASHER A (#14931650) |
| 43 | 14936450 | NUT (#14936450) |
| 46 | 13932900 | WASHER (#13932900) |
| 47 | 14936950 | SPRING (#14936950) |
| 48 | 14931050 | DIAPHRAGM (#14931050) |
| 55 | 43934000 | Fuel Filter Screen (43934000) (#43934000) |
| 56 | 13934600 | CARB.ADAPTER BLACK PLASTIC (#13934600) |
| 57 | 10934900 | BOLT (#10934900) |
| 58 | 14931350 | VALVE (#14931350) |
| 60 | 13933100 | FLOAT PIN (13933100) (#13933100) |
| 61 | 37939905 | GASKET SET CARB 1100 SPORT (#37939905) |
| 62 | 37939920 | CARB MODIFICATION KIT (#37939920) |
