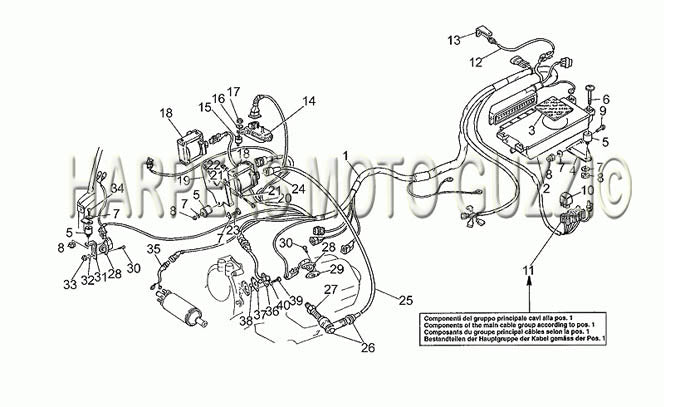

1996 1999 Sport Injected 1100 Electrical System Engine Management
| Position | Part Number | Description |
|---|---|---|
| 1 | 01725800 | FI HARNESS D (#01725800) |
| 2 | 01729500 | FI COMPUTER D (#01729500) |
| 3 | 01732001 | SECURITY SEAL A (#01732001) |
| 4 | 01728700 | MOUNTING PLATE A (#01728700) |
| 5 | 93222020 | RUBBER MOUNT (#93222020) USE 93222023 |
| 6 | 98230616 | SCREW (#98230616) |
| 7 | 95000206 | WASHER (#95000206) |
| 8 | 92630106 | NUT USE 92630707 (#92630106) |
| 9 | 98230612 | ALLEN SCREW (#98230612) |
| 10 | ||
| 11 | 30732400 | RELAY HOLDER (#30732400) |
| 12 | 29727860 | WARNING LAMP (#29727860) |
| 13 | 30732900 | LED BRACKET (#30732900) |
| 14 | 29727061 | PRESSURE SWITCH (#29727061) |
| 15 | 93211315 | MOUNT A (#93211315) |
| 16 | 95100025 | WASHER A (#95100025) |
| 17 | 92601004 | NUT (#92601004) |
| 18 | 30716500 | IGNITION COIL (#30716500) |
| 19 | 01407400 | COIL SUPPORT (#01407400) |
| 20 | 98620125 | BOLT (#98620125) |
| 21 | 95004204 | WASHER (#95004204) |
| 22 | 92630104 | NUT (#92630104) |
| 23 | 98054308 | BOLT (#98054308) |
| 24 | 14717600 | SPARK PLUG RUBBER BOOT (#14717600) |
| 25 | ||
| 26 | 30717410 | PLUG CAP NGK (#30717410) USE AP8212219 |
| 27 | 30717061 | SPARK PLUG BPR6ES (#30717061) |
| 28 | 30729331 | AIR/OIL TEMP SENSOR (30729331) USE 30729330 (#30729331) |
| 29 | 30027931 | GASKET (#30027931) |
| 30 | 98610110 | ALLEN BOLT (#98610110) |
| 31 | 30728230 | BRACKET A (#30728230) |
| 32 | 95120032 | WASHER A (#95120032) |
| 33 | 92601003 | NUT A (#92601003) |
| 34 | 98230610 | SCREW (#98230610) |
| 35 | 01738500 | HARNESS-F/PUMP A (#01738500) |
| 36 | 01721600 | TIMING SENSOR (#01721600) |
| 37 | 29722760 | SENSOR GASKET (#29722760) |
| 38 | 90706141 | O RING (#90706141) USE 847180 |
| 39 | 98622210 | SCREW (#98622210) |
| 40 | 95004205 | WASHER (#95004205) |
