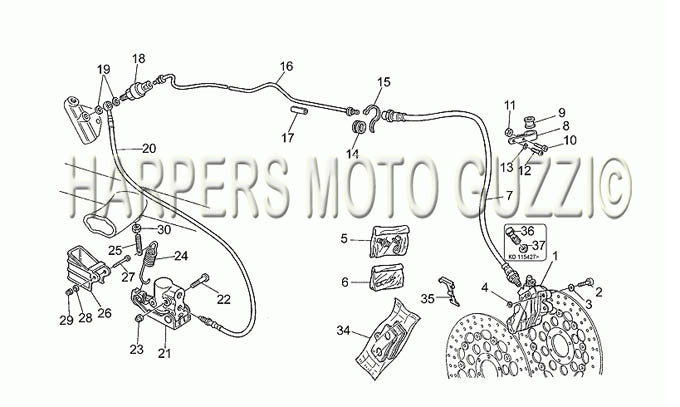

1997 2000 California EV (v11 EV Usa) 1100 Frame Braking Correction Device
| Position | Part Number | Description |
|---|---|---|
| - | 1654630 | #20 Pads pair (#1654630) |
| - | 1659230 | #21 Bleeder+cap (#1659230) |
| - | ||
| - | 3658800 | #07 Brake hose (#3658800) |
| - | 30652202 | CALIPER LH Gold (#30652202) |
| - | 30659102 | BRAKE PIN KIT (#30659102) |
| - | 95100332 | SHIM 0.5 MM (#95100332) |
| - | 95129180 | WAVE WASHER (#95129180) |
| - | 98623530 | BOLT (#98623530) |
| 1 | ||
| 2 | 98622530 | BOLT (#98622530) |
| 3 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 4 | 95100333 | SHIM 0.8 MM (#95100333) |
| 5 | 30659200 | BLEEDER SCREW KIT (#30659200) |
| 6 | 1659130 | Pins+Caliper springs (#1659130) |
| 7 | ||
| 8 | 3658300 | #08 Hose clamp (#3658300) |
| 9 | 17658260 | RUBBER RING (#17658260) |
| 10 | 98280410 | SCREW (#98280410) |
| 11 | 92630104 | NUT (#92630104) |
| 12 | 98230615 | ALLEN SCREW A (#98230615) |
| 13 | 61013800 | SPRING WASHER (#61013800) |
| 14 | 91551120 | GROMMET (#91551120) |
| 15 | 14609650 | TIE WRAP (#14609650) |
| 16 | 30658760 | BRAKE PIPE A (#30658760) |
| 17 | 17659650 | TUBE (#17659650) |
| 18 | 3668500 | #18 Valve 4,5 bar (#3668500) |
| 19 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 20 | ||
| 21 | 3668200 | #21 Braking correction device (#3668200) |
| 22 | 98230841 | ALLEN BOLT A (#98230841) |
| 23 | 92630108 | NUT 8MM (#92630108) |
| 24 | 3668801 | #24 Spring (#3668801) |
| 25 | 3667300 | #25 Adjuster screw (#3667300) |
| 26 | ||
| 27 | 98052250 | BOLT A (#98052250) |
| 28 | 95004205 | WASHER (#95004205) |
| 29 | 92630205 | LOCK NUT (#92630205) |
| 30 | 92602408 | NUT (#92602408) |
| 34 | 30654602 | BRAKE PADS SET PR (#30654602) USE FA95 |
| 35 | 1659131 | #23 Spring (#1659131) |
| 36 | 95990028 | SCREW (#95990028) |
