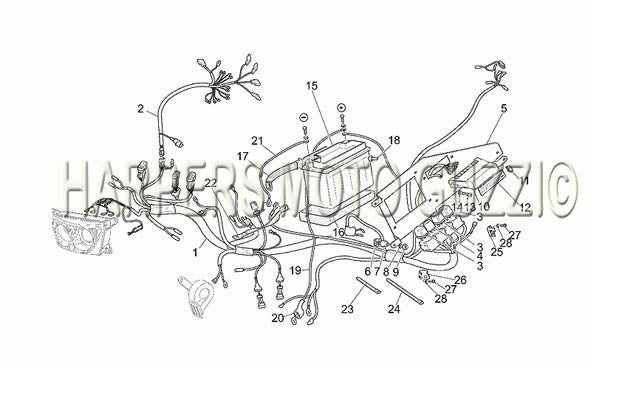

1998 2002 Quota ES 1100 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 30747125 | HARNESS-MAIN C (#30747125) |
| 2 | 30747225 | HARNESS-DASH (#30747225) |
| 3 | ||
| 4 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 5 | 30746325 | PLATE B (#30746325) |
| 6 | 28576590 | CLIP A (#28576590) |
| 7 | 29737960 | MOUNT (#29737960) |
| 8 | 95000206 | WASHER (#95000206) |
| 9 | 92602206 | NUT (#92602206) USE STHN6MM |
| 10 | 37743005 | FUSE BOX A (#37743005) |
| 11 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 12 | 02945000 | DECAL-FUSEBOX A (#02945000) |
| 13 | 98622210 | SCREW (#98622210) |
| 14 | 95000205 | WASHER (#95000205) |
| 15 | 01704501 | BATTERY-2ND (PC545) (#01704501) |
| 16 | 30707030 | BATTERY PAD (#30707030) |
| 17 | 30704830 | BATTERY STRAP (#30704830) |
| 18 | 19705900 | PLUG (#19705900) |
| 19 | 30748430 | BATTERY CABLE (#30748430) |
| 20 | 19707100 | CAP (#19707100) |
| 21 | 19748000 | CABLE (#19748000) |
| 22 | 02747901 | GROUND CBL (#02747901) |
| 23 | 14609650 | TIE WRAP (#14609650) |
| 24 | 93304390 | TIE WRAP (#93304390) |
| 25 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 26 | 30477200 | BRACKET LH (#30477200) |
| 27 | 98622310 | ALLEN BOLT (#98622310) |
| 28 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
