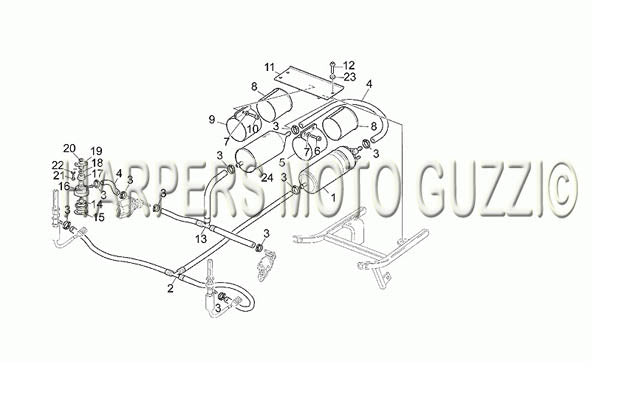

1998 2002 Quota ES 1100 Fuel Supply
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | 30106525 | PIPE A (#30106525) |
| 3 | 93305017 | HOSE CLAMP (#93305017) |
| 4 | 00823952080 | FUEL HOSE V11 SPORT (#00823952080) |
| 5 | 29107360 | CLAMP (#29107360) |
| 6 | 98622312 | SCREW (#98622312) |
| 7 | 61013800 | SPRING WASHER (#61013800) |
| 8 | 29105860 | RUBBER SLEEVE (#29105860) |
| 9 | 29113860 | CLAMP (#29113860) |
| 10 | 98612320 | ALLEN BOLT (#98612320) |
| 11 | 30119025 | PLATE A (#30119025) |
| 12 | 98230612 | ALLEN SCREW (#98230612) |
| 13 | 30108025 | PIPE A (#30108025) |
| 14 | 01112800 | FUEL PRESSURE REGULATOR (#01112800) |
| 15 | 90272037 | CIRCLIP (#90272037) |
| 16 | 01112900 | PRESS REG MT (#01112900) |
| 17 | 30105200 | LOCK NUT (#30105200) |
| 18 | 90714103 | GASKET FUEL TAP TO GAS TANK (#90714103) |
| 19 | 30101830 | FLANGE A (#30101830) |
| 20 | 90706116 | O RING (#90706116) |
| 21 | 98230510 | ALLEN BOLT (#98230510) |
| 22 | 29217960 | WASHER (#29217960) |
| 23 | 95004206 | WASHER (#95004206) |
| 24 | 30106000 | FUEL FILTER (#30106000) |
