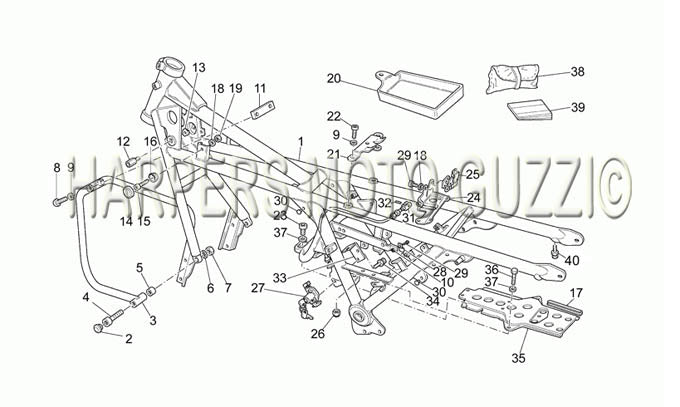

2001 2002 California Ev ev Touring 80 1100 Frame
| Position | Part Number | Description |
|---|---|---|
| 1 | 03400150 | Frame (#03400150) |
| 2 | 93180216 | RUBBER PLUG (#93180216) |
| 3 | 30450260 | ENGINE GUARD CRASH BAR FRONT EV, EV TOURING, STONE (#30450260) |
| 4 | 98681650 | Screw (#98681650) |
| 5 | 91181210 | SPACER (#91181210) |
| 6 | 95022112 | Washer (#95022112) |
| 7 | 92602312 | NUT (#92602312) |
| 8 | 98370845 | Screw (#98370845) |
| 9 | ||
| 10 | 92640106 | #10 Selflocking nut (#92640106) |
| 11 | 17451750 | PLATE (#17451750) |
| 12 | 03469200 | SPACER LH A (#03469200) |
| 13 | 92660801 | CAGE NUT (#92660801) |
| 14 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 15 | 98822316 | ALLEN BOLT (#98822316) |
| 16 | 39103500 | PLATE (#39103500) |
| 17 | 00823931080 | PVC GASKET (#00823931080) |
| 18 | 03013800 | WAVE WASHER (#03013800) |
| 19 | 92606206 | Nut (#92606206) |
| 20 | 03479545 | TOOL TRAY (#03479545) |
| 21 | 30461360 | BRACKET (#30461360) use 304613605 |
| 22 | 98350416 | Screw (#98350416) |
| 23 | 98682420 | Screw (#98682420) |
| 24 | 03462345 | SEAT BRACKET EV KING/QUEEN (#03462345) |
| 25 | 30462060 | SEAT LOCK ASSY (#30462060) |
| 26 | 92640508 | Nut (#92640508) |
| 27 | 30466860 | HELMET LOCK A (#30466860) |
| 28 | 17335950 | LOCK PLATE (#17335950) |
| 29 | 98350312 | CLUTCH MOUNT SCREW (#98350312) |
| 30 | 93180080 | PLUG (#93180080) |
| 31 | 30462160 | CABLE-SEAT LOCK (#30462160) |
| 32 | 95522508 | SPRING PIN (#95522508) |
| 33 | 30463260 | BRACKET A (#30463260) |
| 34 | 66468115 | SECURITY BOLT (#66468115) |
| 35 | 29418360 | BATTERY PLATE (#29418360) |
| 36 | 98084416 | Screw (#98084416) |
| 37 | 95008208 | WASHER (#95008208) |
| 38 | 03909900 | Toolkit (#03909900) |
| 39 | 03900010 | O/Manual (#03900010) |
