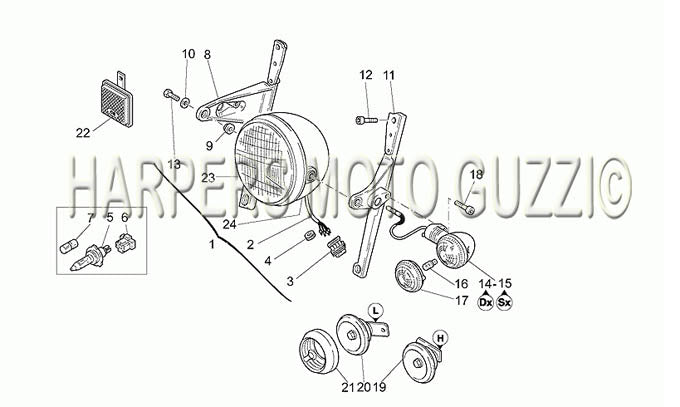

2001 2002 California Ev ev Touring 80 1100 Frame Headlight
| Position | Part Number | Description |
|---|---|---|
| - | ||
| - | ||
| - | 3496130 | #08 RH support (#3496130) |
| - | ||
| - | 3740531 | #01 Headlight (#3740531) |
| - | ||
| - | 3751631 | #07 RH front/LH rear turn indic. (#3751631) |
| 1 | ||
| 2 | 2746900 | #02 Wiring (#2746900) |
| 3 | 1756100 | #03 4way connector AMP (#1756100) |
| 4 | 91551105 | GROMMET (#91551105) |
| 5 | 93450232 | CAL H/L BULB 60/55 (#93450232) USE 292723 |
| 6 | 1756220 | #06 Lampholder (#1756220) |
| 7 | 93450119 | BULB 12V (#93450119) USE 163015 |
| 8 | ||
| 9 | 14439800 | SPACER (#14439800) |
| 10 | 95008208 | WASHER (#95008208) |
| 11 | 3496230 | #11 LH support (#3496230) |
| 12 | 98692318 | ALLEN SCREW (#98692318) |
| 13 | 98064425 | BOLT (#98064425) |
| 14 | ||
| 15 | ||
| 16 | 93450127 | T/SIG. BULB - CLEAR (#93450127) |
| 17 | 31753765 | SIGNAL LENS AMBER (#31753765) USE AP8124111 |
| 18 | 98682314 | Screw (#98682314) |
| 19 | 31743765 | HORN HIGH A (#31743765) |
| 20 | 31743766 | HORN LOW A (#31743766) |
| 21 | 31744765 | HORN COVER A (#31744765) |
| 22 | 14781670 | REFLECTOR (#14781670) |
| 23 | 3740431 | #23 Optical group (#3740431) |
| 24 |
