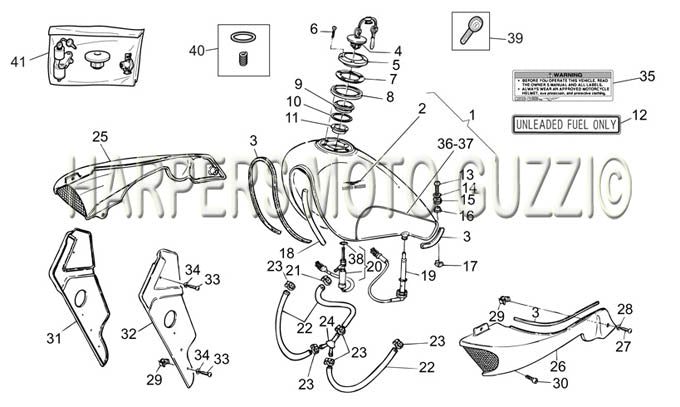

| Position |
Part Number |
Description |
| 1 |
31100283
|
Fuel tank blank (#31100283) |
| 1 |
89000420
|
Fuel tank, black (#89000420) |
| 1 |
89000425
|
Fuel tank blue/grey (#89000425) |
| 1 |
89000430
|
FUEL TANK (#89000430) |
| 1 |
89000435
|
FUEL TANK GREY (#89000435) |
| 1 |
89000440
|
FUEL TANK (#89000440) |
| 2 |
31917885
|
#02 RH sticker Eagle black (#31917885) |
| 2 |
31917886
|
#02 RH sticker Eagle grey (#31917886) |
| 2 |
31917985
|
#02 LH sticker Eagle black (#31917985) |
| 2 |
31917986
|
#02 LH sticker Eagle grey (#31917986) |
| 3 |
| 4 |
| 5 |
03101900
|
GAS CAP FLANGE (#03101900) |
| 6 |
03103200
|
SCREW A (#03103200) |
| 7 |
03103500
|
SPACER (#03103500) |
| 8 |
03102400
|
FLANGE GASKET (#03102400) |
| 9 |
03102200
|
GAS CAP SEAT (#03102200) |
| 10 |
03101600
|
GAS CAP GASKET (#03101600) |
| 11 |
03101720
|
RESTRICTOR 38MM (#03101720) |
| 12 |
03995730
|
DECAL UNLEADED FUEL ONLY (#03995730) |
| 13 |
98350430
|
Hex Socket Screw (#98350430) |
| 14 |
95100239
|
WASHER (#95100239) |
| 15 |
31103565
|
SPACER (#31103565) |
| 16 |
91551131
|
GROMMET (#91551131) |
| 17 |
92660801
|
CAGE NUT (#92660801) |
| 18 |
00823944050
|
HOSE (#00823944050) |
| 19 |
31103082
|
#19 Fuel level sensor (#31103082) |
| 20 |
37105305
|
PETCOCK ELECTRIC SOLINOID VALVE (#37105305) |
| 21 |
93305017
|
HOSE CLAMP (#93305017) |
| 22 |
00823956080
|
OIL BREATHER HOSE (#00823956080) |
| 23 |
28157950
|
BREATHER PIPE CLAMP (#28157950) |
| 24 |
29106860
|
FUEL Y-UNION (#29106860) |
| 25 |
31570681
|
#25 RH side chromium plated (#31570681) |
| 25 |
31570683
|
#25 RH side chromium plated inox (#31570683) |
| 26 |
31570781
|
#26 LH side chromium plated (#31570781) |
| 26 |
31570783
|
#26 LH side chromium plated inox (#31570783) |
| 27 |
98370625
|
ALLEN SCREW (#98370625) USE STAB6X25 |
| 28 |
95005307
|
Washer (#95005307) |
| 29 |
92660601
|
CAGE NUT (#92660601) |
| 30 |
98370621
|
BOLT (#98370621) |
| 31 |
31575365
|
#24 RH front protect black (#31575365) |
| 32 |
31575465
|
#25 LH front protect black (#31575465) |
| 33 |
98350320
|
SCREW (#98350320) |
| 34 |
95008306
|
WASHER (#95008306) |
| 35 |
30944300
|
WARNING DECAL (#30944300) |
| 36 |
31923985
|
#36 Sticker RH grey line (#31923985) |
| 36 |
31923987
|
#36 Sticker RH red line (#31923987) |
| 36 |
31923988
|
#36 Sticker RH blue line (#31923988) |
| 36 |
31923989
|
#36 Sticker RH grey line (#31923989) |
| 37 |
31924085
|
#37 Sticker LH grey line (#31924085) |
| 37 |
31924087
|
#37 Sticker line LH red (#31924087) |
| 37 |
31924088
|
#37 Sticker line LH blue lord (#31924088) |
| 37 |
31924089
|
#37 Sticker LH grey line (#31924089) |
| 38 |
90706020
|
O-Ring (#90706020) |
| 39 |
30735500
|
IGNITION KEY BLANK (#30735500) |
| 40 |
03104370
|
#40 Tank cap ring and spring kit (#03104370) |
| 41 |
31736884
|
#41 Lock hardware kit (#31736884) |
