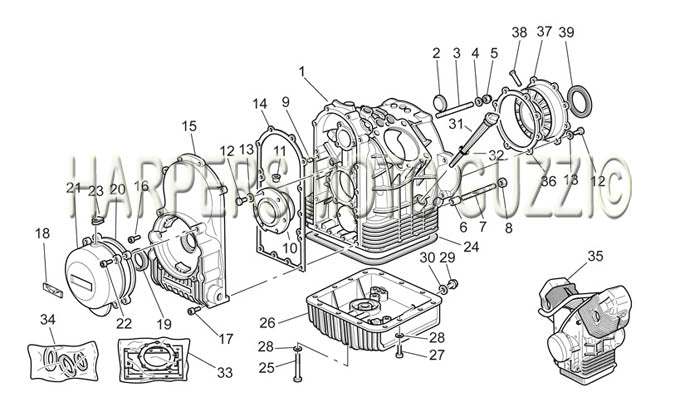

2002 California Special Sport al. PL 1100 Crank Case
| Position | Part Number | Description |
|---|---|---|
| 1 | 03000730 | Crankcase black (#03000730) |
| 1 | 03000760 | ss 03000305 - CRANKCASE BLACK (#03000760) |
| 2 | 12003900 | PLUG CAP (#12003900) |
| 3 | 96508066 | SHORT STUD (#96508066) |
| 4 | 95005308 | WASHER M8 (#95005308) |
| 5 | 92787008 | NUT (#92787008) USE 860651 |
| 6 | 12018900 | BUSH (#12018900) |
| 7 | 96508075 | LONG STUD (#96508075) |
| 8 | 92606208 | NUT (#92606208) |
| 9 | 95512081 | PIN (#95512081) |
| 10 | 14011900 | Front Main Bearing (#14011900) |
| 10 | 14011901 | Front Main Bearing 1ST U/S (#14011901) |
| 11 | 12012200 | PIN (#12012200) |
| 12 | 98084425 | Bolt 8mmx25mm (#98084425) |
| 13 | ||
| 14 | 12001200 | TIMING COVER GASKET (#12001200) USE 05001231 |
| 15 | 03001460 | TIMING COVER BLACK (#03001460) |
| 16 | 98682325 | BOLT (#98682325) |
| 17 | 98680335 | SCREW (#98680335) |
| 18 | 02517700 | EMBLEM FOR ALTERNATOR COVER 1100 EV (#02517700) |
| 19 | 90402840 | SEAL (#90402840) |
| 20 | 18001150 | COVER SPACER (#18001150) |
| 21 | 01001630 | ALTERNATOR COVER (#01001630) |
| 21 | 03001600 | 1100EV ALTERNATOR COVER(#03001600) |
| 22 | 98310631 | SCREW (#98310631) |
| 23 | 19007700 | RUBBER (#19007700) |
| 24 | 14003600 | PAN GASKET (#14003600) |
| 25 | 98082390 | Bolt (#98082390) |
| 26 | 03003561 | OIL PAN - BLACK (#03003561) |
| 28 | 95008206 | WASHER (#95008206) |
| 29 | 12003702 | DRAIN PLUG MAGNETIC (#12003702) |
| 30 | 95100709 | CRUSH WASHER (95100709) (#95100709) |
| 31 | 30004910 | DIPSTICK (#30004910) |
| 32 | 90706178 | O RING (#90706178) |
| 33 | 30999060 | GASKET SET A (#30999060) |
| 34 | 17999550 | SEAL KIT ENGINE (#17999550) |
| 35 | 03991060 | Engine black (#03991060) |
| 35 | 03991061 | Engine black (#03991061) |
| 35 | 03991065 | Engine black (#03991065) |
| 35 | 03991066 | Engine black (#03991066) |
| 36 | 12011800 | REAR MAIN FLANGE BEARING GASKET (#12011800) |
| 37 | 12011400 | Rear Main Bearing (#12011400) |
| 37 | 12011401 | Rear Main Bearing U/S 2MM (#12011401) |
| 37 | 12011402 | Rear Main Bearing (#12011402) |
| 37 | 12011403 | Rear Main Bearing (#12011403) |
| 38 | 12011700 | PIN (#12011700) |
| 39 | 90405367 | CRANKSHAFT SEAL - REAR MAIN (#90405367) |
