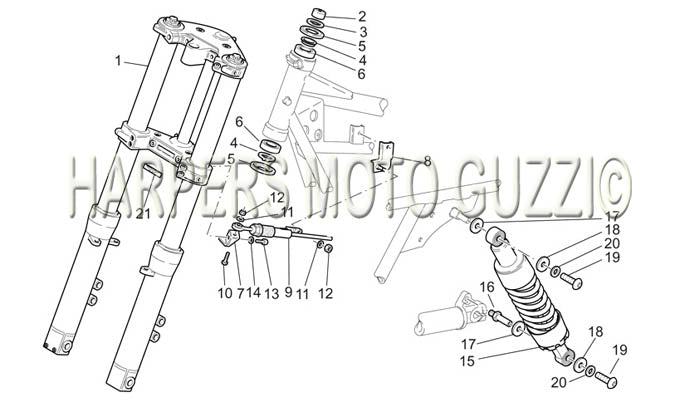

2002 California Special Sport al. PL 1100 F Fork R Shock Absorber
| Position | Part Number | Description |
|---|---|---|
| 1 | 03490261 | Front fork (#03490261) |
| 2 | 30513401 | NUT (#30513401) |
| 3 | 30516500 | WASHER (#30516500) |
| 4 | 14516700 | SHIM (#14516700) |
| 5 | 14517000 | RING DUST SEAL (#14517000) |
| 6 | 92249225 | TAPERED ROLLER BRNG (#92249225) |
| 7 | 03531800 | SHOCK MOUNT PLATE (#03531800) |
| 8 | 03531000 | BRACKET A (#03531000) |
| 9 | 03530270 | STEERING DAMPER (#03530270) |
| 10 | 98084325 | Hex screw (#98084325) |
| 11 | 95008306 | WASHER (#95008306) |
| 12 | 92630707 | NUT (#92630707) |
| 13 | 98350320 | SCREW (#98350320) |
| 14 | 03013800 | WAVE WASHER (#03013800) |
| 15 | 03550260 | REAR SHOCK (#03550260) USE 03550261 |
| 16 | 03541850 | PIVOT PIN (#03541850) |
| 17 | 95100432 | Washer (#95100432) |
| 18 | 95100141 | WASHER (#95100141) |
| 19 | 98370614 | Screw (#98370614) |
| 20 | ||
| 21 | 01517700 | BADGE (#01517700) |
