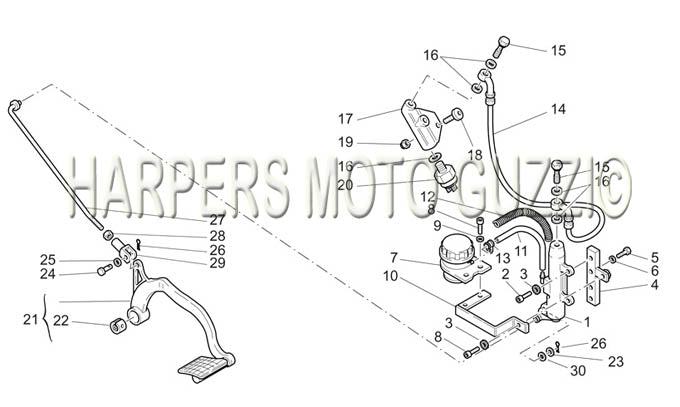

2002 California Special Sport al. PL 1100 Rear Master Cylinder
| Position | Part Number | Description |
|---|---|---|
| 1 | 30666960 | MASTER CYLINDER (#30666960) |
| 2 | 98682325 | BOLT (#98682325) |
| 3 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 4 | 30666760 | MASTER CYL MOUNT (#30666760) |
| 5 | 98084412 | Screw (#98084412) |
| 6 | 14615901 | WASHER (#14615901) |
| 7 | 65663500 | BRAKE RESERVOIR (#65663500) |
| 8 | 98682310 | Screw (#98682310) |
| 9 | 95008306 | WASHER (#95008306) |
| 10 | 30666060 | BRAKE RESIVOR MOUNT (#30666060) |
| 11 | 00823950050 | TUBE (#00823950050) |
| 12 | 30665860 | TUBE SPRING (#30665860) |
| 13 | 61108500 | CLIP (#61108500) |
| 14 | 03658500 | BRAKE HOSE(#03658500) |
| 15 | 95990028 | SCREW (#95990028) |
| 16 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 17 | 17656850 | BRAKE BLOCK (#17656850) |
| 18 | 98230616 | SCREW (#98230616) |
| 19 | 92630206 | NUT (#92630206) |
| 20 | 63657000 | BRAKE LIGHT SWITCH (#63657000) |
| 21 | 03675930 | BRAKE PEDAL (#03675930) |
| 22 | 30678160 | BUSHING (#30678160) |
| 23 | 95100173 | WASHER (#95100173) |
| 24 | 95780267 | CLEVIS PIN (#95780267) |
| 25 | 95129110 | WASHER (#95129110) |
| 26 | 95500221 | Split Pin (#95500221) |
| 27 | 30675160 | LINKAGE ROD A (#30675160) |
| 28 | 92609007 | Bolt (#92609007) |
| 29 | 95740175 | FORK CHROME (#95740175) |
| 30 | 95129131 | Washer (#95129131) |
