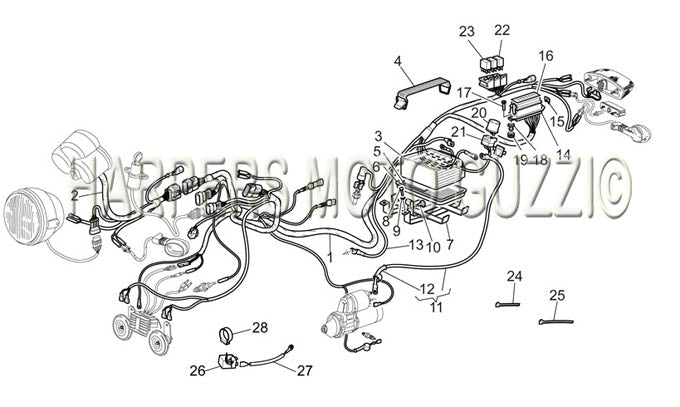

2002 V 11 Le Mans 1100 Electrical System

Position Part Number Description
1 1747160 Main wiring harness (#1747160)
3 01704501 BATTERY-2ND (PC545) (#01704501)
4 14102600 STRAP (#14102600)
5 29579460 GASKET (#29579460)
6
7 01418230 BATTERY FRAME (#01418230)
8 98084314 BOLT (#98084314)
9 95008206 WASHER (#95008206)
10 19705900 PLUG (#19705900)
11 01748430 Wire (#01748430)
12 19707100 CAP (#19707100)
13 02747901 GROUND CBL (#02747901)
14 01743030 FUSE BLOCK (#01743030)
15 28742558 Fuse, 5A (#28742558)
15 28742559 FUSE 10A (#28742559)
15 28742560 FUSE 15A (#28742560) use 290860
15 28742562 FUSE 30A (#28742562)
16 01945030 FUSE BOX STICKER (#01945030)
17 98230515 ALLEN SCREW (#98230515) USE 98370515
18 01746630 FUSE HOLDER (#01746630)
19 91551085 RUBBER BLOCK USE 9155 1086 (#91551085)
20 17750520 TURN SIGNAL FLASHER (#17750520)
21 17751200 FLASHER HOLDER (#17751200)
22 01732560 Mini-relay 4 PIN (#01732560)
23 01731760 RELAY 5 PIN (#01731760)
24 14609650 TIE WRAP (#14609650)
25 93304390 TIE WRAP (#93304390)
26 31750560 FLASHER A (#31750560)
27 31755660 GROUND CABLE A (#31755660)
28 30787310 MOUNT (#30787310)
