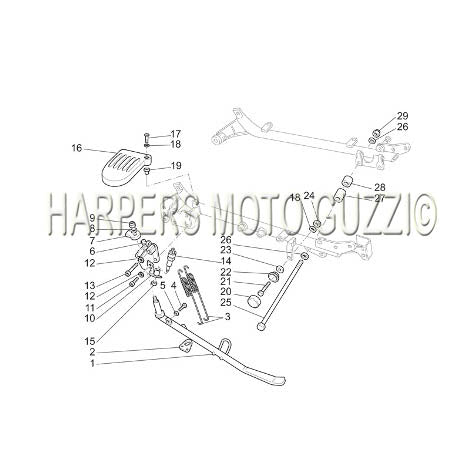

2003 2004 California Stone touring pl cat 1100 Lateral Stand
| Position | Part Number | Description |
|---|---|---|
| 1 | 03432050 | Side Stand, Black (#03432050) |
| 2 | 18432760 | PLATE (#18432760) |
| 3 | 03434070 | SPRING, Sidestand (#03434070) |
| 4 | 98084216 | Screw (#98084216) |
| 5 | 92606205 | LOCK NUT (#92606205) |
| 6 | 03433470 | Bracket (#03433470) |
| 7 | 03432740 | STAND RETAINER (#03432740) |
| 8 | 95008210 | Washer (#95008210) |
| 9 | 92630110 | NUT (#92630110) |
| 10 | 03433850 | SIDE STAND SWITCH MOUNT (#03433850) |
| 11 | 98682416 | Hex Socket Screw (#98682416) USE 319165 |
| 12 | ||
| 13 | 98680440 | Screw (#98680440) |
| 14 | 03759150 | SWITCH (#03759150) |
| 15 | 92606508 | Nut (#92606508) |
| 16 | 03446450 | FOOTREST MOUNT LH (#03446450) |
| 17 | 98370621 | BOLT (#98370621) |
| 18 | 95008306 | WASHER (#95008306) |
| 19 | 93231606 | RUBBER BUSHING (#93231606) |
| 20 | 39103400 | RUBBER PAD FOR GAS TANK (#39103400) |
| 21 | 98084316 | Screw (#98084316) |
| 22 | 39103500 | PLATE (#39103500) |
| 23 | 03013800 | WAVE WASHER (#03013800) |
| 24 | 92630707 | NUT (#92630707) |
| 25 | 03429600 | Rear Bolt (#03429600) |
| 26 | 95008313 | Washer, 13X24X2.5 (#95008313) |
| 27 | 03429765 | Spacer Gearbox LH (#03429765) |
| 28 | 03429865 | Spacer, Gearbox RH (#03429865) |
| 29 | 92606312 | Nut (#92606312) |
