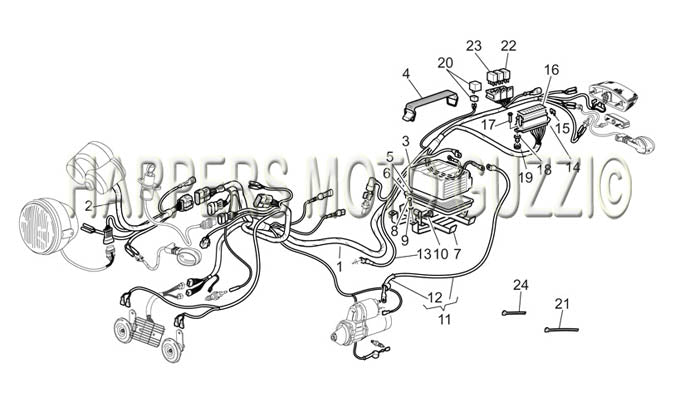

2003 2004 V 11 1100 Electrical System
| Position | Part Number | Description |
|---|---|---|
| 1 | 01747190 | Main Cable Kit (after use 0174 (#01747190) |
| 1 | 01747191 | Main Cable Kit (#01747191) |
| 2 | 01747290 | Dashboard cable (#01747290) |
| 3 | 01704501 | BATTERY-2ND (PC545) (#01704501) |
| 4 | 14102600 | STRAP (#14102600) |
| 5 | 29579460 | GASKET (#29579460) |
| 6 | ||
| 7 | 01418230 | BATTERY FRAME (#01418230) |
| 8 | 98084314 | BOLT (#98084314) |
| 9 | 95008206 | WASHER (#95008206) |
| 10 | 19705900 | PLUG (#19705900) |
| 11 | 01748431 | Wire (#01748431) |
| 12 | 03707140 | SPARK PLUG CAP (#03707140) |
| 13 | 02747901 | GROUND CBL (#02747901) |
| 14 | 01743030 | FUSE BLOCK (#01743030) |
| 15 | 28742558 | Fuse, 5A (#28742558) |
| 15 | 28742559 | FUSE 10A (#28742559) |
| 15 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 15 | 28742562 | FUSE 30A (#28742562) |
| 16 | 01945060 | Decal (#01945060) |
| 17 | 98230515 | ALLEN SCREW (#98230515) USE 98370515 |
| 18 | 01746630 | FUSE HOLDER (#01746630) |
| 19 | 91551086 | GROMMET (#91551086) |
| 20 | AP8124235 | Flasher (#AP8124235) |
| 21 | 93304390 | TIE WRAP (#93304390) |
| 22 | 01732560 | Mini-relay 4 PIN (#01732560) |
| 23 | 01731760 | RELAY 5 PIN (#01731760) |
| 24 | 14609650 | TIE WRAP (#14609650) |
