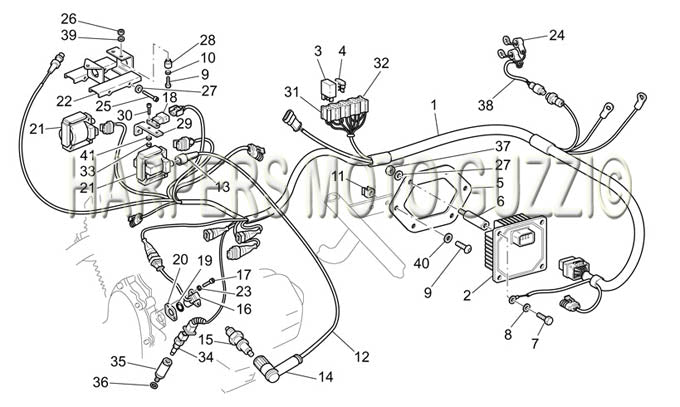

2003 2005 California EV PL Cat. 1100 Electrical System I
| Position | Part Number | Description |
|---|---|---|
| 1 | 03747155 | HARNESS-MAIN (#03747155) |
| 1 | 03747156 | HARNESS-MAIN (#03747156) |
| 2 | 03747270 | Dashboard cable (#03747270) |
| 3 | 30749760 | PLATE A (#30749760) |
| 4 | 98682310 | Screw (#98682310) |
| 5 | 28576590 | CLIP A (#28576590) |
| 6 | 30922260 | CLIP A (#30922260) |
| 7 | 03013800 | WAVE WASHER (#03013800) |
| 8 | 03748440 | BATTERY CABLE (#03748440) |
| 9 | 03707140 | SPARK PLUG CAP (#03707140) |
| 10 | 03753170 | Wire (#03753170) |
| 11 | 02747901 | GROUND CBL (#02747901) |
| 12 | 03746370 | RELAY MOUNT (#03746370) |
| 13 | 98682318 | Screw (#98682318) |
| 14 | 91551080 | GROMMET (#91551080) |
| 15 | 91180607 | SPACER (#91180607) |
| 16 | 30477101 | BRACKET RH (#30477101) USE 304771015 |
| 17 | 30477200 | BRACKET LH (#30477200) |
| 18 | 03704550 | BATTERY-USA, Use PC545 |
| 18 | 03704570 | Battery (#03704570) |
| 18 | 03704571 | BATTERY (#03704571) |
| 19 | 95100118 | WASHER (#95100118) |
| 20 | 92630707 | NUT (#92630707) |
| 21 | 01732530 | USE 01732560 RELAY (#01732530) |
| 21 | ||
| 22 | 28742558 | Fuse, 5A (#28742558) |
| 22 | 28742560 | FUSE 15A (#28742560) use 290860 |
| 22 | 28742561 | Fuse (#28742561) |
| 22 | 28742562 | FUSE 30A (#28742562) |
| 23 | 17750520 | TURN SIGNAL FLASHER (#17750520) |
| 24 | 17751200 | FLASHER HOLDER (#17751200) |
| 25 | 14609650 | TIE WRAP (#14609650) |
| 26 | 03704540 | BATTERY B (#03704540) |
| 27 | ||
| 28 | 30759600 | CABLE BOOT A (#30759600) |
| 29 | 00823944050 | HOSE (#00823944050) |
| 30 | AP8124235 | Flasher (#AP8124235) |
| 30 | AP8127286 | Flasher unit (#AP8127286) |
| 31 | AP8124768 | Socket (#AP8124768) |
| 32 | 03116745 | CARB CANNISTER BRACKET (#03116745) |
| 32 | 03418270 | Battery holder (#03418270) |
| 33 | 14615901 | WASHER (#14615901) |
| 34 | 95008206 | WASHER (#95008206) |
| 35 | 03785470 | piastra presa 12V (#03785470) |
| 36 | 49609601 | TIE STRAP (#49609601) |
