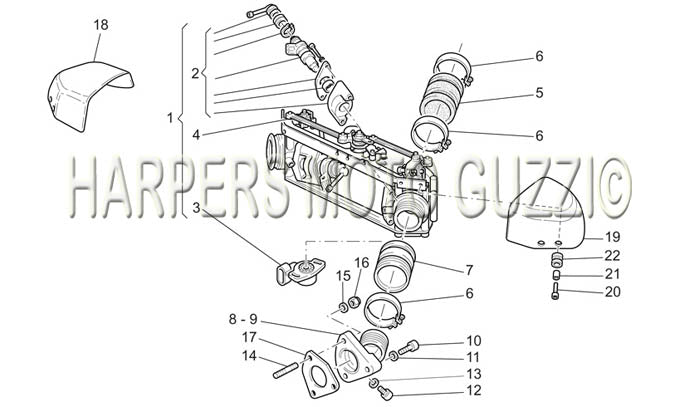

2003 2005 California EV PL Cat. 1100 Engine Throttle Body
| Position | Part Number | Description |
|---|---|---|
| 1 | ||
| 2 | 1530504 | Injector kit complete 30530570 (#1530504) |
| 3 | ||
| 4 | 29530562 | Throttle Rod (#29530562) |
| 5 | 30114470 | SLEEVE FI (#30114470) |
| 6 | 93305061 | CLAMP (#93305061) |
| 7 | 3114370 | #07 Hose (#3114370) |
| 8 | 30115070 | MANIFOLD RH A (#30115070) |
| 9 | 30115071 | MANIFOLD LH (#30115071) |
| 10 | 98682325 | BOLT (#98682325) |
| 11 | 14217901 | LOCK WASHER (#14217901) USE AP8152105 |
| 12 | 98310609 | Screw (#98310609) |
| 13 | 95100116 | WASHER (#95100116) |
| 14 | 96506039 | STUD (#96506039) |
| 15 | 95008206 | WASHER (#95008206) |
| 16 | 92781062 | NUT (#92781062) |
| 17 | 28115560 | MANIFOLD GASKET (#28115560) |
| 18 | 3113360 | #18 RH cover chromium plated (#3113360) |
| 19 | 3113460 | #19 LH cover chromium plated (#3113460) |
| 20 | 97202112 | SCREW (#97202112) |
| 21 | 91180408 | SPACER (#91180408) |
| 22 | 91551034 | GROMMET (#91551034) |
