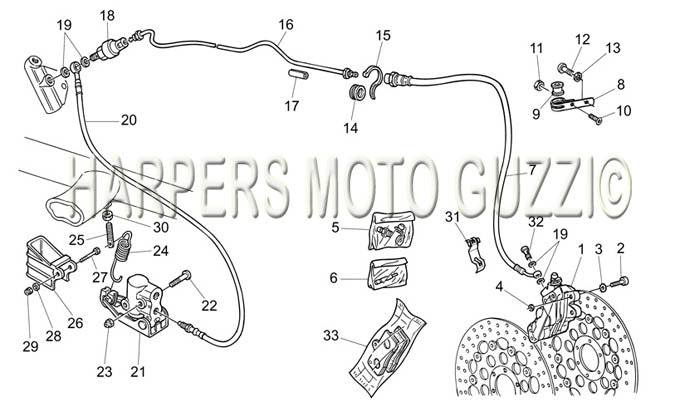

2003 2005 California EV PL Cat. 1100 Frame Lh Front Brake System
| Position | Part Number | Description |
|---|---|---|
| - | 95100332 | SHIM 0.5 MM (#95100332) |
| 1 | ||
| 2 | 98683530 | Bolt, Caliper (#98683530) |
| 3 | 19149800 | WASHER (#19149800) USE AP8152220 |
| 4 | 95100333 | SHIM 0.8 MM (#95100333) |
| 5 | 1659230 | #21 Bleeder+cap (#1659230) |
| 6 | 1659130 | Pins+Caliper springs (#1659130) |
| 7 | ||
| 8 | 3658330 | #08 Hose clamp (#3658330) |
| 9 | 3658201 | #09 Ring (#3658201) |
| 10 | 98257410 | Screw (#98257410) |
| 11 | 92630104 | NUT (#92630104) |
| 12 | 98350315 | Screw (#98350315) |
| 13 | ||
| 14 | 91551120 | GROMMET (#91551120) |
| 15 | 14609650 | TIE WRAP (#14609650) |
| 16 | 30658760 | BRAKE PIPE A (#30658760) |
| 17 | 17659650 | TUBE (#17659650) |
| 18 | 3668500 | #18 Valve 4,5 bar (#3668500) |
| 19 | 25656100 | WASHER, ALUMINUM (#25656100) |
| 20 | ||
| 21 | 3668200 | #21 Braking correction device (#3668200) |
| 22 | 98350440 | Screw (#98350440) |
| 23 | 92630108 | NUT 8MM (#92630108) |
| 24 | 3668801 | #24 Spring (#3668801) |
| 25 | 3667300 | #25 Adjuster screw (#3667300) |
| 26 | ||
| 27 | 98082250 | Screw (#98082250) |
| 28 | 95008205 | Washer 5.3mm (#95008205) |
| 29 | 92630205 | LOCK NUT (#92630205) |
| 30 | 92606408 | Nut (#92606408) |
| 31 | 1659131 | #23 Spring (#1659131) |
| 32 | 95990028 | SCREW (#95990028) |
| 33 | 1654630 | #20 Pads pair (#1654630) |
