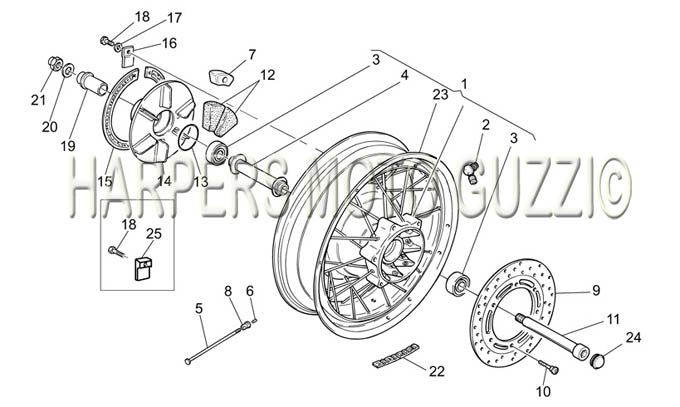

2003 2005 California EV PL Cat. 1100 Frame Rear Wheel
| Position | Part Number | Description |
|---|---|---|
| - | ||
| 1 | ||
| 2 | ||
| 3 | 92204220 | BEARING (#92204220) |
| 4 | ||
| 5 | ||
| 6 | 98460404 | Theaded Dowel (#98460404) |
| 7 | ||
| 8 | ||
| 9 | ||
| 10 | 30611460 | ALLEN BOLT (#30611460) |
| 11 | 3633370 | #11 Rear wheel spindle (#3633370) |
| 12 | ||
| 13 | 90706490 | O RING (#90706490) |
| 14 | 30335260 | DISC-CUSH DRIVE B (#30335260) |
| 15 | 14335303 | RING (#14335303) |
| 16 | 17335950 | LOCK PLATE (#17335950) |
| 17 | ||
| 18 | 98084312 | BOLT, rear drive snap ring (#98084312) |
| 19 | ||
| 20 | 95008219 | Washer (#95008219) |
| 21 | 92630719 | LOCK NUT (#92630719) |
| 22 | 14616150 | WEIGHTS (#14616150) |
| 23 | ||
| 24 | 93180111 | RUBBER PLUG (#93180111) |
| 25 |
