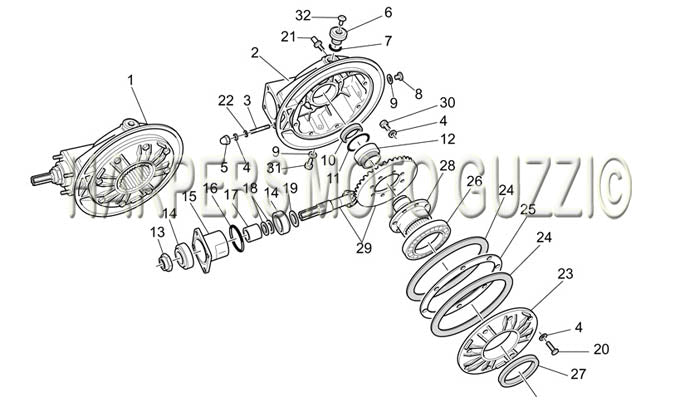

2003 2005 California EV PL Cat. 1100 Frame Transmission Complete II
| Position | Part Number | Description |
|---|---|---|
| - | 12355202 | SHIM 0.10MM (#12355202) |
| - | 17351400 | DRIVE FLANGE OR HUB NLA USE 1735 1401* (#17351400) |
| - | 17355402 | SHIM 0.9MM (#17355402) |
| - | 17355404 | SHIM 1.0MM (#17355404) |
| - | 17355406 | SHIM 1.1MM (#17355406) |
| - | 17355408 | SHIM 1.2MM (#17355408) |
| - | 17355410 | SHIM 1.3MM (#17355410) |
| - | 17355412 | SHIM 1.5MM (#17355412) |
| - | 19355321 | SHIM 1.1MM (#19355321) |
| - | 19355322 | SHIM 1.2MM (#19355322) |
| - | 19355323 | SHIM 1.3MM (#19355323) |
| - | 19355324 | SHIM 1.4MM (#19355324) |
| - | 19355325 | SHIM 1.5MM (#19355325) |
| - | 19355326 | SHIM 1.6MM (#19355326) |
| - | 19355327 | SHIM 1.7MM (#19355327) |
| - | 19355328 | SHIM 1.8MM (#19355328) |
| - | 19355329 | SHIM 1.9MM (#19355329) |
| - | 90403850 | SEAL (#90403850 ) |
| - | 90407085 | REAR DRIVE SEAL OUTPUT TO WHEEL (90407085) USE 9041 7085 (#90407085) |
| 1 | 30350262 | REAR DRIVE ASSY E (#30350262) |
| 2 | 30350360 | REAR DRIVE HSNG B (#30350360) |
| 3 | 96508045 | SCREW (#96508045) |
| 4 | 14615901 | WASHER (#14615901) |
| 5 | 92787008 | NUT (#92787008) USE 860651 |
| 6 | 12022600 | PLUG (#12022600) |
| 7 | 90706203 | O RING (#90706203) |
| 8 | 95980214 | DRAIN PLUG (#95980214) |
| 9 | 1528930 | #26 Gasket 10x18x1,5 (#1528930) |
| 10 | 90413850 | SEAL (#90413850) |
| 11 | 12351100 | RING COPPER METAL SPACER (#12351100) |
| 12 | ||
| 13 | 30356760 | NUT (#30356760) |
| 14 | 92249227 | BEARING (#92249227) |
| 15 | 18352400 | FLANGE (#18352400) |
| 16 | 90706584 | O RING (#90706584) |
| 17 | 18355100 | SPACER (#18355100) |
| 18 | 12355203 | SHIM 0.15MM (#12355203) |
| 19 | 19355320 | SHIM 1.0MM (#19355320) |
| 20 | 19357660 | SCREW (#19357660) |
| 21 | 3555250 | Swing Arm Pin (#3555250) USE 03555250 |
| 22 | 95005308 | WASHER M8 (#95005308) |
| 23 | 17350400 | FLANGE (#17350400) |
| 24 | 17350700 | DIFFERENTIAL BEARING GASKET (#17350700) |
| 25 | 17355400 | SHIM 0.8MM (#17355400) |
| 26 | 92201070 | BEARING (#92201070) |
| 27 | 90417085 | SEAL REAR DRIVE OUTPUT SEAL Viton (#90417085) |
| 28 | 17351401 | DRIVE HUB WAS 1735 1400 (#17351401) |
| 29 | 30354602 | GEARSET 8/33 (#30354602) |
| 30 | 12356300 | SCREW (#12356300) |
| 31 | 31003766 | DRAIN PLUG (#31003766) |
| 32 | 93180245 | RUBBER PLUG (#93180245) |
