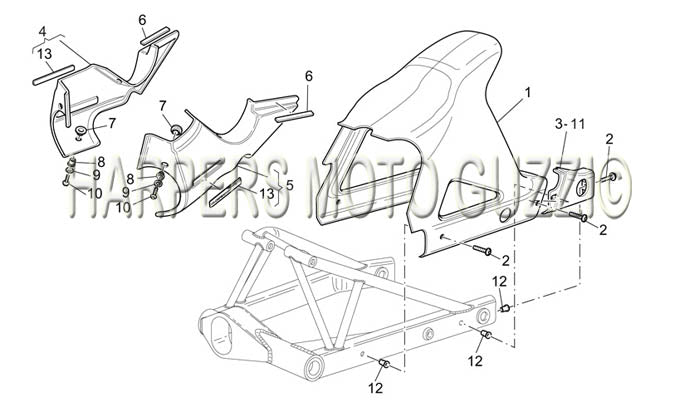

2003 2005 V 11 Cafe ballabio 1100 Frame Rear Body
| Position | Part Number | Description |
|---|---|---|
| - | 01570230 | RH SIDECVR BARE (#01570230) |
| - | 01570282 | RH Painted Panel Ballabio (#01570282) |
| - | 01570288 | RH SIDECVR Coppa Italia (#01570288) |
| - | 01570441 | LH Carbon Fiber Side Cover (#01570441) |
| - | 01570482 | LH Painted Panel Ballabio (#01570482) |
| - | 01570488 | LH SIDECVR Coppa Italia (#01570488) |
| - | 01576080 | Side Panel Decal Cafe' Sport (#01576080) |
| - | 01576082 | Tail Body Decal Grey Ballabio (#01576082) |
| 1 | 01437030 | REAR FENDER (#01437030) |
| 2 | 98223520 | Screw (#98223520) |
| 3 | 01546363 | RH Pivot Cover (#01546363) |
| 4 | 01570241 | RH Carbon Fiber Side Cover (#01570241) |
| 5 | 01570430 | LH SIDECVR BARE (#01570430) |
| 6 | 01573960 | RUBBER PAD (#01573960) |
| 7 | 93180710 | VIBRATION DAMPER (#93180710) |
| 8 | 01576131 | bushing (#01576131) |
| 9 | 01577830 | NYLON WASHER (#01577830) |
| 10 | 98370515 | ALLEN SCREW (#98370515) |
| 11 | 01546463 | LH Pivot Cover (#01546463) |
| 12 | 03742030 | BUSHING (#03742030) |
| 13 | 01576088 | EMBLEM SPECIAL EDITION (#01576088) |
