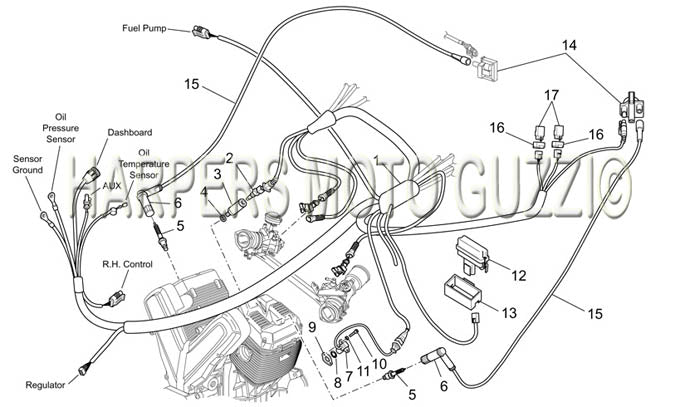

2004 2007 Mgs 01 Corsa 1200 Frame Electrical System I
| Position | Part Number | Description |
|---|---|---|
| - | 01722700 | Gasket (#01722700) |
| - | 01722701 | SENSOR GSKT .4MM (#01722701) |
| - | 01722702 | SENSOR GSKT .6MM (#01722702) |
| - | 01722703 | SENSOR GSKT .8MM (#01722703) |
| - | 01722704 | SESOR GSKT 1.MM (#01722704) |
| - | 02163300 | SENSOR HOLDER A (#02163300) |
| - | 29722760 | SENSOR GASKET (#29722760) |
| 1 | 02747150 | Main wiring harness (#02747150) |
| 2 | 29729461 | OIL TEMP SENSOR (#29729461) |
| 3 | 03163330 | SENSOR HOLDER A (#03163330) |
| 4 | 14018400 | WASHER (#14018400) |
| 5 | 02717051 | Spark plug Champion-RA59GC (#02717051) |
| 6 | 02717450 | Spark cap (#02717450) |
| 7 | 01721600 | TIMING SENSOR (#01721600) |
| 8 | 90706141 | O RING (#90706141) USE 847180 |
| 9 | 01722705 | SENSOR GSKT 1.5MM (#01722705) |
| 10 | 98682212 | Hex Socket Screw (#98682212) |
| 11 | 95008205 | Washer 5.3mm (#95008205) |
| 12 | ||
| 13 | ||
| 14 | 30716500 | IGNITION COIL (#30716500) |
| 15 | 02718350 | HT wire (#02718350) |
| 16 | ||
| 17 |
