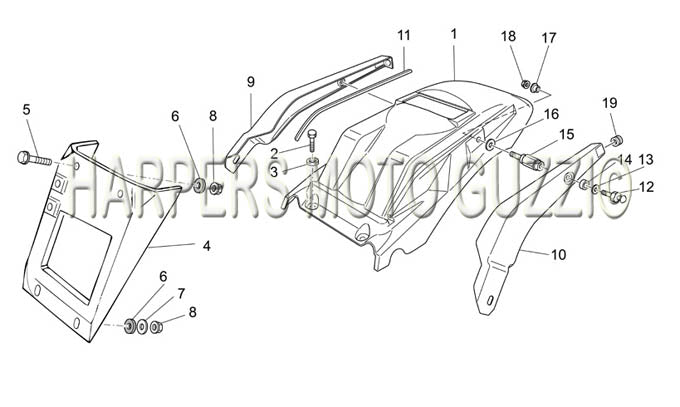

2004 2008 Nevada Classic ie 750 Frame Rear Body Mudguard
| Position | Part Number | Description |
|---|---|---|
| - | 32437061 | Rear Mudguard Luce Grey - Neva (#32437061) |
| - | 32437062 | Rear Mudguard Guzzi Black - Ne (#32437062) |
| - | 32437063 | Rear mudguard, red (#32437063) |
| - | 32573160 | Rear Mudguard Blank - Nevada (#32573160) |
| - | ||
| - | 977435 | Rear mudguard, yellow (#977435) |
| - | 977552 | Rear mudguard, white (#977552) |
| 1 | 977335 | Rear mudguard, red (#977335) |
| 2 | 97202420 | SCREW WITH FLANGE (#97202420) |
| 3 | 91120804 | Spacer 8,5x20x4,5 (#91120804) |
| 4 | 31438765 | Splash Guard (#31438765) |
| 5 | ||
| 6 | 93110060 | RUBBER WASHER (#93110060) |
| 7 | 95100141 | WASHER (#95100141) |
| 8 | ||
| 9 | 32457860 | RH Rear Cover Chromate - Nevad (#32457860) |
| 10 | 32459160 | LH Rear Cover Chromate - Nevad (#32459160) |
| 11 | 00823931080 | PVC GASKET (#00823931080) |
| 12 | 03467343 | Stud Bolt (#03467343) |
| 13 | 95005310 | WASHER (#95005310) |
| 14 | 32464660 | Spacer 14.6X18X6.5 (#32464660) |
| 15 | 91181406 | Spacer - Nevada (#91181406) |
| 16 | 95008215 | Washer (#95008215) |
| 17 | ||
| 18 | ||
| 19 | 93180117 | RUBBER A (#93180117) |
